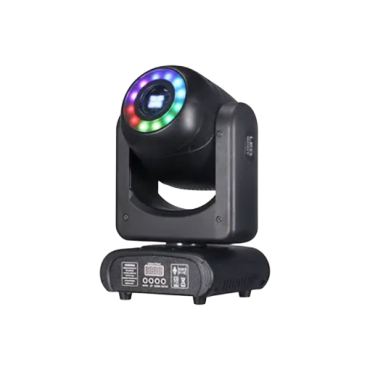

SPOTTY LED 90 Moving Head Spot Light

High-efficiency LED spotlight with sharp beam definition. Ideal for followspot applications and precise stage highlighting.

Key Features:

• Brilliant 80W LED with 9500K color temperature for clear, high-impact lighting
• 50,000-hour lifespan ensures long-term, reliable performance
• Gobo wheel includes 3 metal and 2 glass gobos for creative pattern projection
• Built-in RGB halo ring with 12 LEDs adds colorful ambient effects
• 3-facet rotating prism and 1–25Hz strobe for dynamic beam and motion effects
• Compact and powerful—ideal for stages, clubs, and live events

Brilliant 80W LED Light Source with High Color Temperature

The SPOTTY LED 90 is powered by an advanced 80W LED with a color temperature of 9500K, delivering exceptional brightness and clarity. Its 50,000-hour lifespan ensures sustained, reliable performance, perfect for professional applications in demanding environments.

Innovative Gobo System with Glass and Metal Gobos

Featuring a gobo wheel with 3 metal and 2 glass gobos, this fixture provides unmatched creative flexibility. The detailed glass gobos are ideal for high-definition projections, while the metal gobos add dynamic and sharp effects, enhancing any stage or event design.

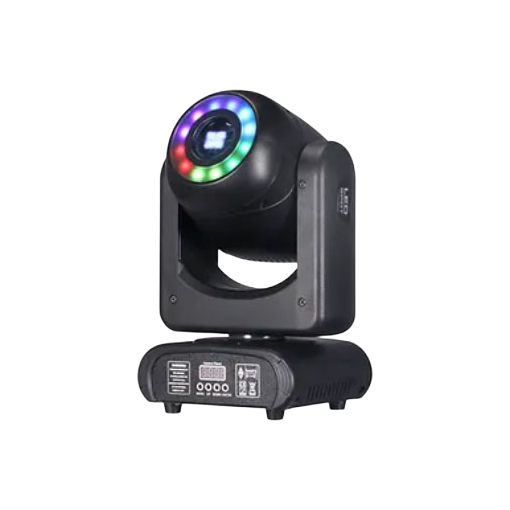

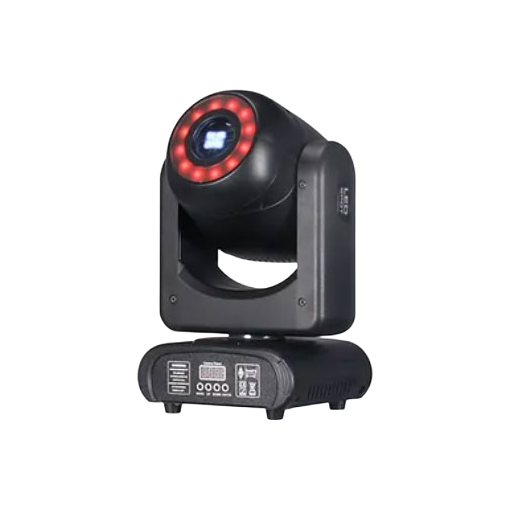

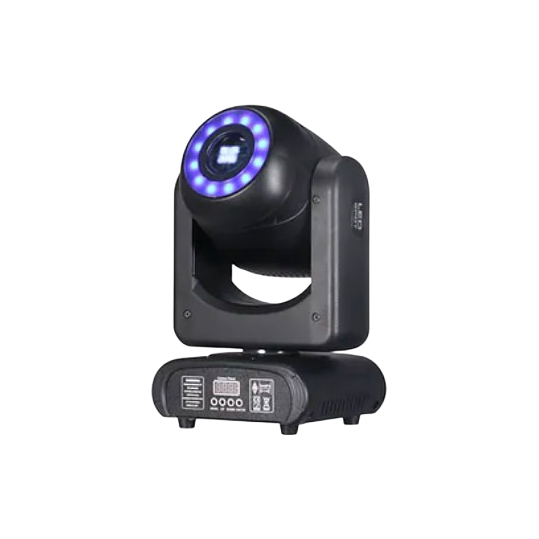

Integrated RGB Halo Ring for Ambient Lighting Effects

The fixture includes a halo ring composed of 12 RGB LEDs, offering an additional layer of customizable effects. This feature enhances the overall visual experience by creating ambient light patterns and color highlights to complement the main spot effect.

Dual Dynamic Effects: Strobe and Prism

The SPOTTY LED 90 boasts a 3-facet rotating prism that multiplies light beams for stunning aerial effects. Combined with a high-speed strobe feature adjustable from 1–25Hz, it delivers electrifying energy to concerts, clubs, and live productions.

Precise 15° Beam Angle for Focused and Defined Effects

The SPOTTY LED 90's sharp 15° beam angle ensures pinpoint precision, delivering concentrated light output. This makes it an excellent choice for highlighting performers, objects, or architectural elements on stage.

Specification

ELECTRICAL

• Input power: AC100-240V
• Power frequency: 50/60Hz
• Power consumption: 95W
• Fuse: 5A

LIGHT SOURCE

• Source: 80W LED
• CCT: 9500K
• Halo Ring: 12pcs RGB LED
• Average lifespan: 50000 hours

COLOR SYSTEM

• Color wheel: 7 colors + open

ELECTRONICS

• Linear dimming: 0-100% Linear Dimmer
• Strobe: 1-25Hz

OPTICS

• Beam Angle: 15°

DYNAMICS EFFECTS

• Prism: 3-facet
• Gobo wheel: 3 metal gobos + 2 glass gobos
• Color: 7 colors + open

CONTROL

• DMX channels: 14CH

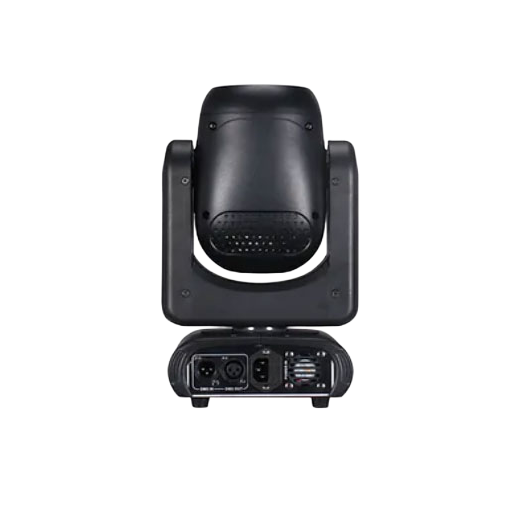

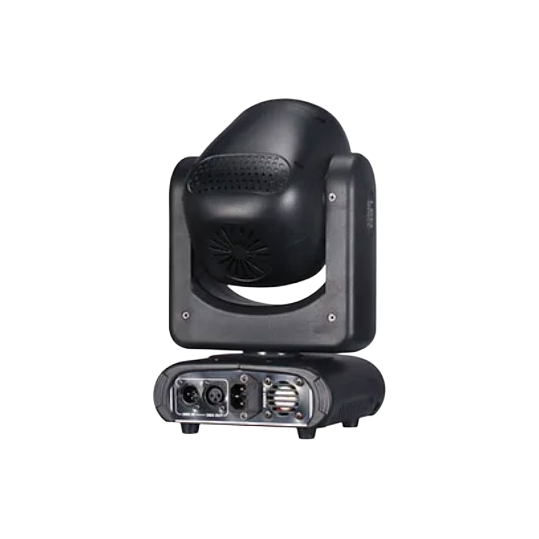

• DMX connector: 3-Pin XLR input/output
• Power connector: IEC Power input
• Control mode: DMX/Master-Slave/Auto/Sound
• Pan: 540°, 8/16 bits scanning
• Tilt: 270°, 8/16 bits scanning
• LED color display with 4 buttons

PHYSICAL

• IP Rating: IP20
• Housing color: black
• Working ambient temp.: -10°C to 40°C (-14°F to 104°F)
• Dimensions: 210*170*340mm / 8.3*6.7*13.4in
• Weight: 3.9kg / 8.6lb

Frequently Asked Questions - FAQ

1. What is the SPOTTY LED 90?,br>The SPOTTY LED 90 is a compact professional moving head spot fixture designed for DJs, clubs, churches, theaters, weddings, and live event productions. It delivers bright spot projections, gobo effects, prism effects, and dynamic color changes.

2. What light source does the SPOTTY LED 90 use?
The fixture is powered by a high-output 90W white LED engine, providing bright illumination, low power consumption, and a long operational lifespan.

3. Does the SPOTTY LED 90 feature gobo effects?
Yes. The fixture includes both rotating and static gobo wheels, allowing users to project patterns, textures, and creative visual effects for stage and event lighting.

4. What color effects are available?
The SPOTTY LED 90 features a color wheel with 7 colors plus open white, enabling vibrant color changes, split-color effects, and rainbow transitions.

5. Does the fixture include a prism?
Yes. The SPOTTY LED 90 includes a rotating 3-facet prism that multiplies beam projections and creates dynamic aerial effects.

6. Does the SPOTTY LED 90 have motorized focus?
Yes. The fixture features motorized electronic focus, allowing users to achieve sharp gobo projections at various distances.

7. What control modes are supported?
The SPOTTY LED 90 supports DMX512, Auto, Sound Active, and Master/Slave operation modes for flexible programming and standalone use.
