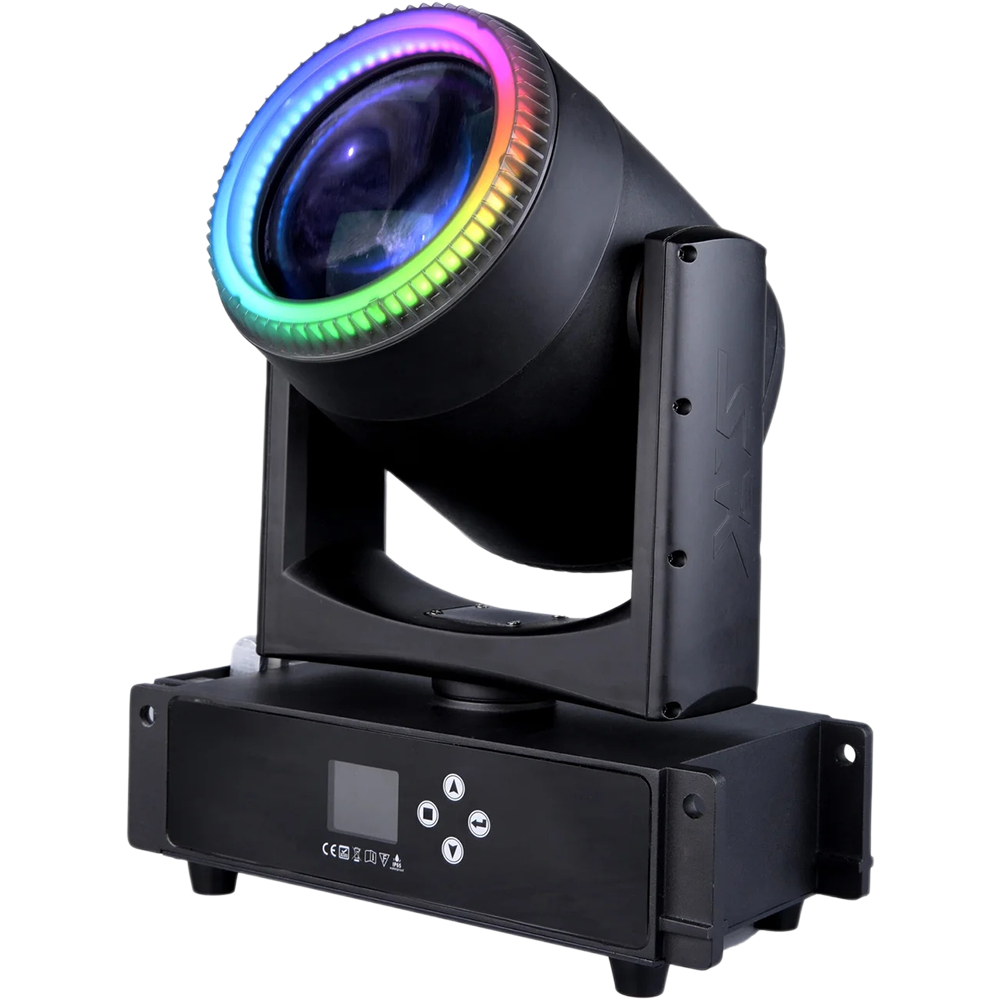

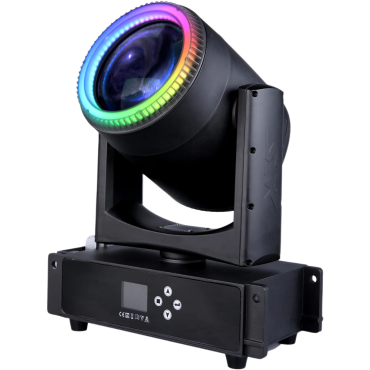

CYCLONE 80IP IP65 Moving Head Beam Light

Discover the CYCLONE 80IP, a compact IP65-rated moving head beam fixture featuring an 80W LED source, endless pan and tilt movement, rotating prism

Key Features:

• Infinite Pan & Tilt Rotation
• Linkable Design for Linear Multi-Fixture Effects
• Ultra-Strong Beam Output
• IP-Rated Housing for Outdoor Use
• Integrated Halo Ring for Eye-Candy Effects
• 8 Static Gobos + 8 Colors + 1 Prism

Upgrade your lighting setup with the Cyclone 80IP, a compact yet powerful LED moving head designed for DJs, event planners, churches, outdoor stages, and production professionals. Featuring strong beam output, infinite pan and tilt movement, and eye-catching halo effects, this fixture delivers serious visual impact for a wide range of live events and installations.

Why Choose the Cyclone 80IP

• Professional-grade beam effects in a compact moving head
• Ideal for DJs, churches, bars, clubs, and outdoor events
• IP-rated housing for reliable indoor and outdoor operation
• Lightweight design with powerful visual performance
• High-impact effects typically found in larger fixtures

Infinite Pan & Tilt Rotation

The Cyclone 80IP features infinite rotation on both pan and tilt, enabling continuous motion without mechanical limits. This allows for smooth sweeps, fast spins, and dynamic movement patterns that add energy and sophistication to any lighting design.

Linkable Design for Linear Effects

Multiple Cyclone 80IP fixtures can interlock and link together, forming straight lines or creative arrays. This design enables synchronized beam lines and large-scale visual effects, making it ideal for truss systems, stages, churches, and architectural installations.

Powerful, Focused Beam Output

Despite its compact size, the Cyclone 80IP delivers strong, concentrated beam effects that cut cleanly through haze and ambient light. The sharp beam output creates bold aerial effects suitable for clubs, outdoor events, and festival-style productions.

Halo Ring for Eye-Candy Effects

An integrated halo ring surrounds the main beam, providing eye-candy effects that enhance depth, motion, and visual interest. This feature is designed to attract attention and add a modern, high-impact look, especially effective for stage and camera-facing applications.

Gobos, Colors, and Prism Effects

The Cyclone 80IP includes 8 gobos, 8 colors, and 1 prism, offering versatile creative options. From textured beam patterns to dynamic color and prism looks, this fixture adapts easily to different environments and performance styles.

IP-Rated for Outdoor Use

Built with an IP-rated enclosure, the Cyclone 80IP is suitable for outdoor applications such as open-air stages, festivals, and permanent outdoor installations. The weather-resistant design ensures stable performance in demanding environments.

Compact and Easy to Deploy

Lightweight and easy to handle, the Cyclone 80IP is quick to transport, rig, and install. Its compact footprint makes it an excellent choice for mobile DJs, touring setups, and venues that require powerful effects with minimal setup time.

Specification

ELECTRICAL

• Input power: AC100-240V
• Power frequency: 50/60Hz
• Power consumption: 150W

LIGHT SOURCE

• Main: 80W white LED, CT: 8000K-9000K
• Halo Ring: 60pcs RGB LED
• Average lifespan: 50000 hours

COLOR SYSTEM

• Color wheel: 8 colors + open

ELECTRONICS

• Linear dimming: 0-100% Linear Dimmer
• Strobe: 1s/25

OPTICS

• Beam Angle: 2°

DYNAMICS EFFECTS

• Prism:18 facet prism
• Color wheel: 8 colors + open
• Static gobo wheel: 8 gobos + open

CONTROL

• DMX channels: 19CH/22CH

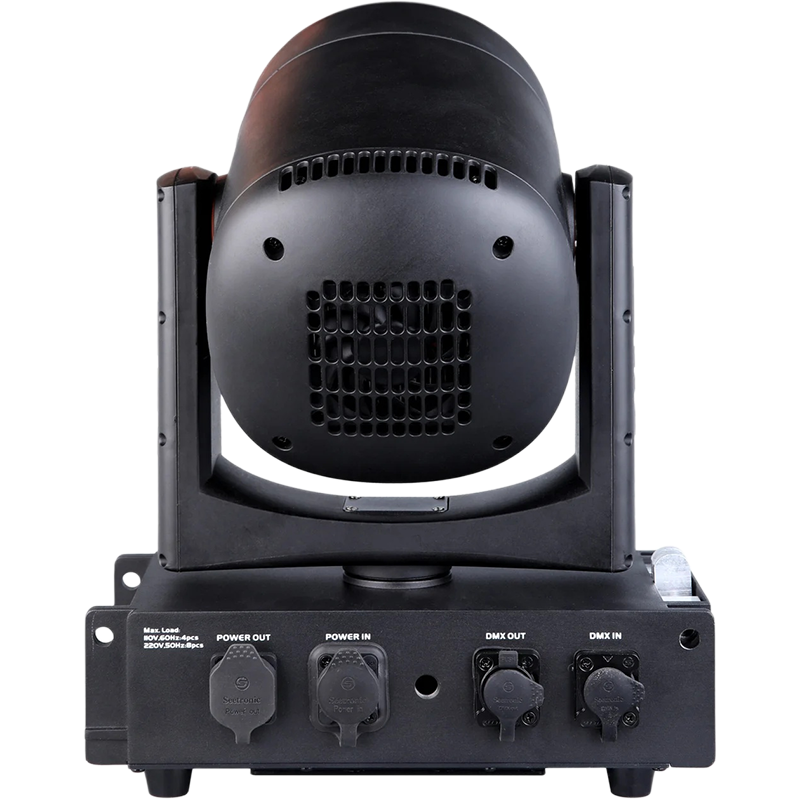

• DMX connector: 3-Pin XLR input/output
• Power connector: True 1 input/output
• Control mode: DMX/Master-Slave/Auto
• Pan: Infinite, 16 bits scanning
• Tilt: Infinite, 16 bits scanning
• LCD color display with 4 buttons

PHYSICAL

• IP Rating: IP65
• Housing color: black
• Working ambient temp.: -10°C to 40°C (-14°F to 104°F)
• Dimensions: 279*151*356mm / 11.0*5.9*14in
• Weight:9kg / 15.4lb

Frequently Asked Questions - FAQ

1. What is the CYCLONE 80IP?
The CYCLONE 80IP is a compact IP65-rated moving head beam light designed for outdoor events, concerts, weddings, theme parks, architectural lighting, and professional stage productions. It combines weather-resistant construction with powerful beam effects and dynamic movement.

2. Is the CYCLONE 80IP suitable for outdoor use?
Yes. The fixture features an IP65-rated housing that protects against dust, rain, and challenging weather conditions, making it ideal for permanent outdoor installations and live events.

3. What type of light source does the CYCLONE 80IP use?
The CYCLONE 80IP utilizes a high-output LED light source engineered to deliver bright, focused beam effects while providing long operational life and low maintenance requirements.

4. What beam effects can the CYCLONE 80IP create?
The fixture produces sharp aerial beams, dynamic movement effects, prism-style visuals, and colorful beam projections that remain highly visible in haze and atmospheric conditions.

5. Does the CYCLONE 80IP include a halo effect?
Yes. The fixture features eye-catching halo visuals around the lens, adding an extra layer of creativity and visual impact for stages, clubs, and outdoor events.

6. What control modes are available?
The CYCLONE 80IP supports DMX512 control, Auto programs, Sound Active mode, and Master/Slave operation, providing flexibility for both professional programmers and plug-and-play users.
