American DJ Dotz TPar System

ADJ Dotz TPar System

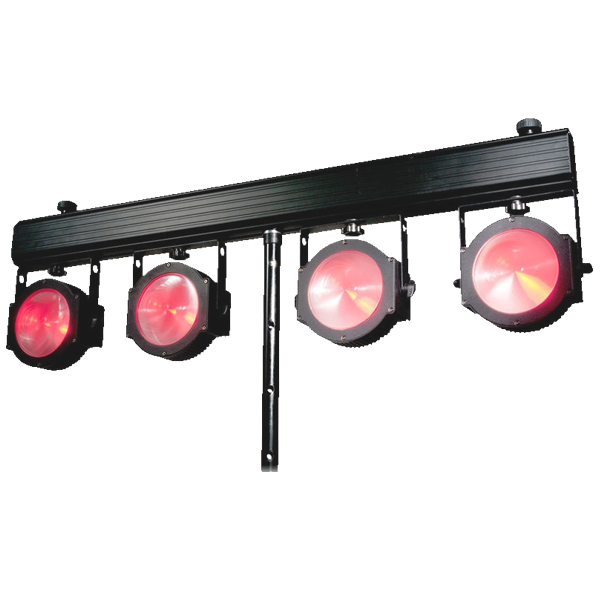

The Dotz TPar System is a exciting all-in-one LED Wash system for mobile entertainers bands and stage lighting. This lighting system features a 4-head T-Bar light system each with one 30-Watt COB TRI LED (RGB), producing wide, saturated color washes of light with LEDs rated at an extremely long life of 50,000 hours. The system washes a very large area with its 90-degree beam angle. Or change the light output to a 25-degree beam with the included lens kit.

Great for any performer on-the-go, the Dotz TPar System is easy to set-up and take down. Plus, with low heat emitting LEDs performers stay cooler on stage. The system includes a tripod stand, a foot controller, RF remote control and a gig bags to help protect your equipment.

In addition to it s built-in programs and the wired foot controller , the Dotz TPar System may also be controlled by an external DMX Controller via it s XLR In/Outs. User can also mount two smaller lighting fixtures on top of the T-bar and plug them in directly on the back of the bar.

Specification

• COB LED Par Wash System with 4 Par fixtures.
• COB Technology (Chip On Board) produces powerful, smooth RGB color mixing with rich palettes of color.
• Smooth RGB Color Mixing (fast or slow color change operation).
• Great for Stage Lighting, Bands, Night Clubs & Mobile Entertainers.
• Emits less heat on performers on stage as opposed to conventional stage lighting.
• 4 Operational modes: Sound Active, Auto Run, Master/Slave & DMX Controlled.
• Pixel Flip option changes pixel orientation.
• 15 Built-in Programs.
• 5 DMX Channel modes: 3, 6, 7, 12 and 18 channels.
• Digital DMX Display with 4-button menu for easy navigation.
• 3-Pin DMX In/Out.
• Strobe & Pulse LED Effect.
• Electronic Dimming: 0-100%.
• 5 selectable Dim Curves (Standard, Stage, TV, Architectural & Theatre).
• Beam angle: 90-degree.
• Includes 25-degree beam angle lens kit.
• Long Life LEDs (Rated at approximately 50,000 hrs.).
• Foot Controller Features: Mode, Black Out and Program Change.
• Light Source: Each fixture has 1x 30-Watt TRI Color COB LEDs.
• LUX @ 3M: 1345.
• Power Draw: 144W Max (entire system).
• 2x power plugs on rear or plug in other lighting fixtures (120V = Edison, 230V = Shuko).
• Includes hardware to mount lighting fixtures on top of bar.
• Multi-voltage operation: AC 100V-240V 50/60Hz (IEC Input).
• Dimensions (LxWxH): 39.5 x 12.75 x 3.25 / 1000 x 320 x 82mm.
• Weight: 35 lbs./ 16 kg. (Fixture Bar, Stand & Controller).

What's Include

• (4) COB LED Par Wash Fixtures
• (1) Wired Foot Controller
• (1) Lighting Stand
• (1) RF Remote Control
• (1) Stand Bag
• (1) Soft case for lighting system
