Details

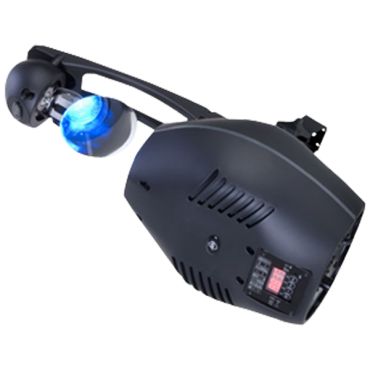

The Vizi Scan LED Pro is a high performance DMX Scanner that features two effects in one: A hard edge spot beam or a frost (wash) effect! This fixture is powered by a high output 50W long life LED source (6500°K, 60,000 hr.) with a low power draw of 130W.
This unit is compact & light weight and offers plenty of pro features such as: 8 Dichroic Colors + white (includes UV), 7 Rotating Gobos (Interchangeable) a Prism Wheel with 3-facet and Infinite prisms, Remote Focus, Gobo Indexing, Dimming (0-100%), Strobe effect, 2 DMX channel modes (12 or 14 Ch.) and a Gobo Scroll mode.
The Vizi Scan LED Pro also features the SLOCK™ - Slide Lock gobo changing system - that makes removing and installing gobos much easier.
Features:
- 50W High Output LED DMX Scanner that produces a spot and a frost (wash) effect
- RDMX - Remote DMX addressing (Change DMX values remotely from any DMX console)
- 7 Rotating, Interchangeable Gobos + Spot (5 metal + 2 glass gobos) with SLOCK™ (Slide Lock) gobo changing system
- 7 Colors + UV Filter + White
- Independent gobo and color wheels
- 12 Ch. or 14 Ch. DMX Modes
- 4 operational modes: DMX, Master/Slave, Stand Alone & Sound Active
- Prism Wheel: 3-Facet or Infinite
- Frost Effect (Wash)
- Pan/Tilt (8-Bit) + Fine Pan/Tilt (16-Bit)
- Metal Gobo size: 27mm (22mm viewable gobo size; thickness: 0.3mm)
- Glass Gobo size: 27mm (22mm viewable gobo size; thickness: 2mm)
- Dimming: 0% - 100%
- 13-degree beam angle
- Remote Focus
- Gobo Shake
- Gobo Indexing
- Strobe effect
- Pan: 540-degree standard (630-degree optional)
- Tilt: 35-degrees
- LED DMX 4-Button menu system
- Stepper motors with micro stepping
- Hanging bracket included
- 3-pin XLR In/Out
- Fan cooled
- Gobo scroll mode
- Auto X-Y repositioning
- Shutter: Pulse effect; random strobe slow to fast
- Flicker-free operation
- Multi-voltage Operation: 100-240V, 50Hz/60Hz
- Power Consumption: 130W max
- Lamp: 50W white LED source, 6500°K (60,000 hour rated)
- Dimensions (LxWxH): 11.75”x12”x22.25” / 297x301x563mm
- Weight: 17 lbs. / 7.5kg.
- PDF Manual
| Manufacturer | American DJ |
