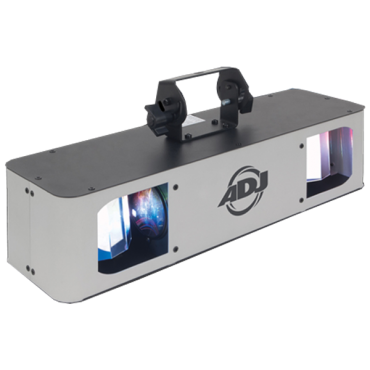

The American DJ Double Phase LED is an exciting dual barrel mirrored lighting effect with two 10W, high quality, CREE 4-IN-1 RGBW LEDs. The barrel mirrors produce a large beam with up to a variety different color combinations.
The Double Phase LED offers 3 different operational modes: Sound Active and Master/Slave (both from built-in programs), as well as a DMX-512 programming mode. This lighting fixture offers DMX In/Out as well as Power Linking (IEC In/Out) to connect multiple units together for the ultimate light show. Users can also use the American DJ UC3, easy-to-use lighting controller to operate the Double Phase LED.
The Double Phase LED’s long LED life and exciting built-in programs make it ideal for mobile entertainers, night clubs, roller rinks, and bowling centers. This lighting effect is best when used with fog.
- Double Barrel Mirror effect with large RGBW beams
- Powered by two CREE 10W 4-IN-1 RGBW (Red, Green, Blue and White) high output color beams
- 3 operational modes: Sound active with built-in programs; Master/Slave or DMX-512
- 6 DMX channels (Dimmer/Strobe, Color & Roller Speed & Rotation)
- 4-button DMX LED Display or rear panel
- Built-in programs (Sound Active & Master/Slave modes)
- Linkable via 3-pin XLR cable
- Strobe effect
- Dimming 0-100% (when using DMX mode)
- Wide beam spread covers a large area
- Beam angle: 150 degrees
- Long life LEDs (30,000 hr. rating)
- Includes hanging bracket & safety hook
- Very low heat output
- Run all night - no duty cycle
- Compatible with the American DJ UC3 easy-to-use controller (sold separately)
- In/Out IEC Plugs to daisy-chain power (link up to 9 units)
- Multi-voltage: 100-240V, 50/60Hz (IEC Plug)
- Power consumption: 40W max
- Dimensions (LxWxH): 19”x7.75”x5.25” / 478x194.5x134mm
- Weight: 10 lbs. / 4.5kg.
- ETL approved (see user manual for more info)
