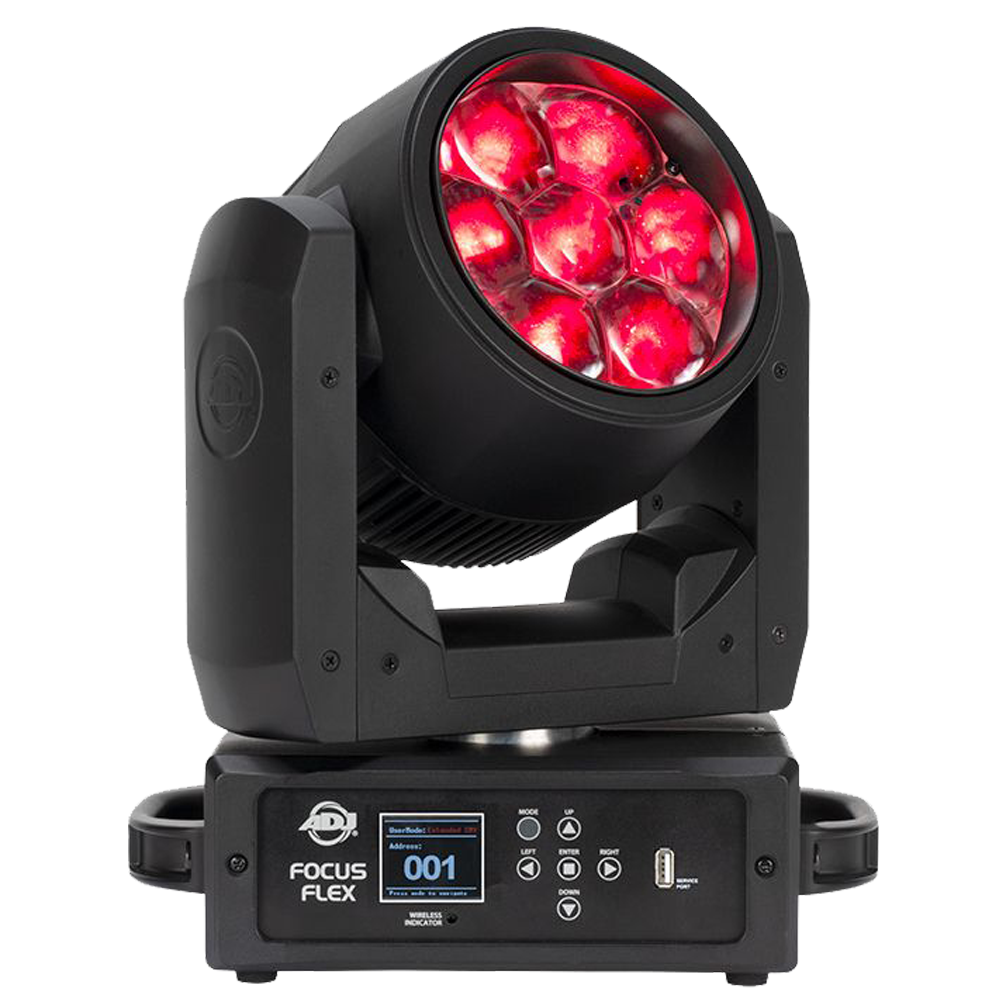

ADJ Focus Flex

Description

The Focus Flex offers lighting designers the creative flexibility of generating vibrant washes, punchy beams, and eye-catching pixel effects from one compact and quick automated luminaire. Powered by an array of seven potent 40-Watt 4-in-1 RGBW color mixing LEDs, each of which can be controlled independently, it offers a motorized zoom function providing the versatility of a variable field angle of between 6 and 57-degrees. With a variety of DMX mode options appropriate to different applications, it offers virtual CMY color mixing and virtual foreground and background color wheel control as well as a choice of seven different DMX modes.

Specification

Light Source:

• 7 x 40-Watt RGBW LEDs (50,000 hr.)
• CRI: 78.7
• 15,140 lux / 4 beam @ 16' (5m)
• 378 lux / 35° beam @ 16' (5m)
• Lumens: 3240 (Zoomed Out, Full On)

Features:

• Moving Head Pixel Wash with Pixel Effects
• Electronic Strobe / Dimmer
• Pan/Tilt: 540/630 x 265
• Motorized Zoom
• Beam Angle: 4° ~ 35°
• Field Angle: 6°~57°
• Color Calibrated Pixels so units match from batch to batch
• Virtual CMY DMX Control Modes
• Virtual Foreground and Background Color Wheel Control
• Selectable LED Refresh Rates (900 Hz~25K Hz)
• Selectable Dim Modes: Standard, Stage, TV, Arch., Theatre, Stage 2 and user settable Dim Speed (0.1S~10S)
• 4 Dim Curves: Square, Linear, Inv. Square and S. Curve
• 0-100% smooth dimming
• Various strobe speeds
• USB firmware update port
• Fan Cooled
• Antenna for WiFLY EXR Wireless DMX

Colors:

• Virtual CMY DMX Control Modes
• Virtual Foreground and Background Color Wheel Control
• Built-In Color Macros
• 2700k ~ 10,000 Liner White Color Control
• Color Temperature Presets: 2700, 3000, 3200, 4000, 4500, 5000, 5600, 6500, 8000 and 10,000K

Control:

• 7 DMX Modes - 16/25/34/42/50/25 (CMY)/28 (CMY) Channels
• Color LCD display with 6-button function menu
• Control Mode: DMX512 or internal programs
• Built-In Effect Pixel Programs with Speed and Fade Control
• Various strobe speeds
• USB firmware update port
• With Wired Digital Communication Network
• RDM (Remote Device Management)
• WiFLY EXR Wireless DMX built-in (2500 ft. / 700M line of sight)

Pan/Tilt:

• Pan: 540/630 degrees
• Tilt: 265 degrees

Connections:

• DMX Connections: 5-pin XLR In/Out
• Power Connections: Indoor Locking Power In/Out

Electrical:

• Multi-voltage operation: 90-240V, 47/63Hz
• Max power consumption: 340W @120v

Dimensions & Weight:

• Dimensions (LxWxH): 7.0"L x 11.5"W x 12.9" H (179x292x329mm)
• Weight: 15.5lbs (7kg)

What's Included:

• Omega Brackets
• 1.83M locking power cable

Optional Road Cases:

• DRC MH: 2 Focus Flex fit in the DRC MH Road Case
• QRC MH: 4 Focus Flex fit in the QRC MH Road Case

Approvals / Rating:

• cETL Approved / CE Certified
• IP20
