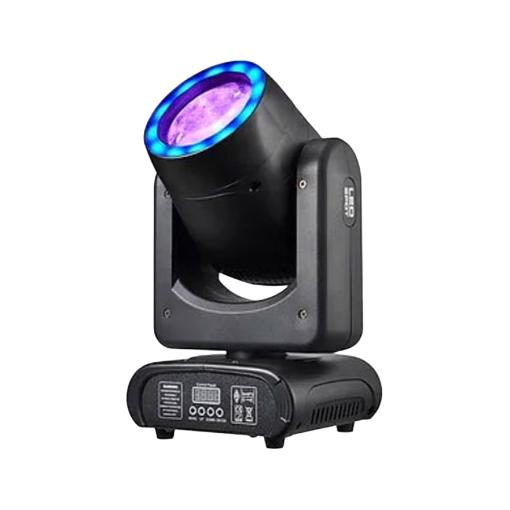

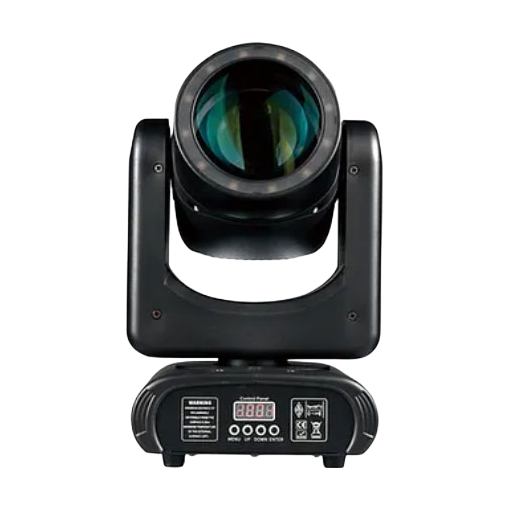

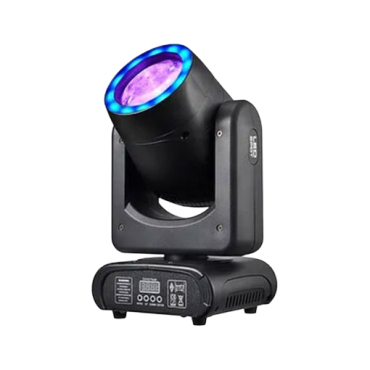

JUBARIS BEAM L90 90W LED Moving Head Beam Light with Dual Prism Effects

Compact High-Precision Beam Light with Dual Prism Effects for Theaters, Clubs, Event Halls and Other Indoor Events

Key Features:

• Sharp 2° beam cuts through fog for intense, high-impact lighting
• Dual rotating prisms (16-facet & 6-facet) create stunning layered beam effects
• 5 gobos and 7 vibrant colors enable dynamic patterns and vivid light shows
• RGB halo ring with 12 LEDs adds ambient glow and dramatic visual depth
• Smooth 16-bit pan/tilt movement with DMX, Auto, Sound, and Master-Slave modes for precise control

Precision Optics with Ultra-Narrow Beam Angle

The JUBARIS BEAM L90 features a tight 2° beam angle, delivering razor-sharp beams that cut through any lighting environment. This precision ensures high-impact visuals, making it ideal for concert stages, clubs, and dynamic event designs.

Dual Rotatable Prism System

Equipped with both a 16-facet and a 6-facet rotatable prism, this fixture creates stunning multi-layered beam effects. These prisms allow lighting designers to produce intricate patterns and mesmerizing aerial effects, elevating the visual experience of any event.

Dynamic Gobo and Color System

The light comes with a gobo wheel featuring 5 gobos plus open, and a color wheel with 7 vibrant colors plus open. This combination enables seamless transitions, unique beam patterns, and endless creative possibilities for customized light shows.

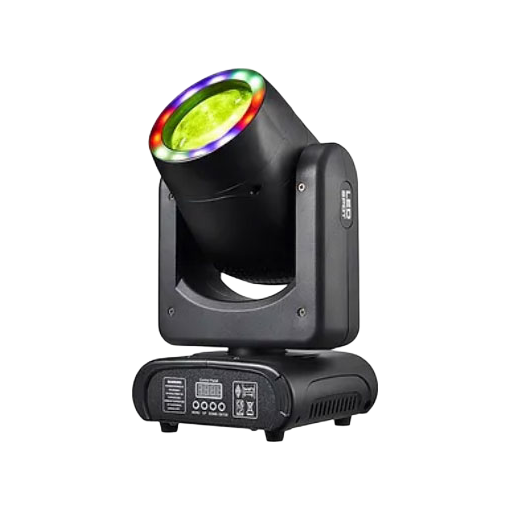

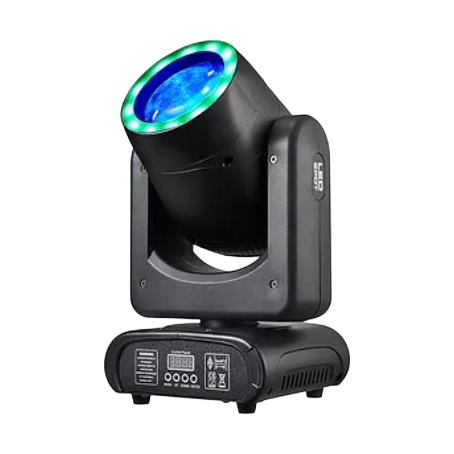

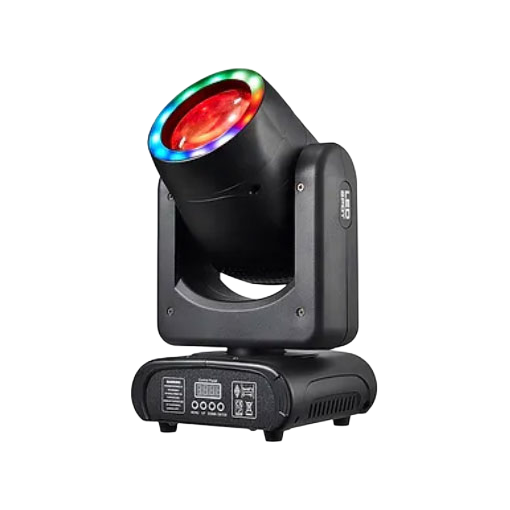

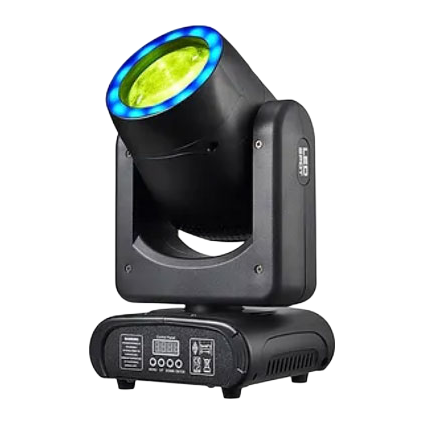

Integrated Halo Ring with RGB LEDs

The JUBARIS BEAM L90 includes a unique halo ring composed of 12 RGB LEDs. This adds an extra layer of ambient color and dynamic effects, creating eye-catching visuals that captivate audiences and enhance stage designs.

Versatile Control Options and Smooth Motion

Supporting 14 DMX channels, this fixture offers advanced control modes including DMX, Master-Slave, Auto, and Sound-Activated. It also provides precise 16-bit pan (540°) and tilt (270°) movement for smooth, fluid motion that enhances any performance.

Specification

ELECTRICAL

• Input power: AC100-240V
• Power frequency: 50/60Hz
• Power consumption: 150W
• Fuse: 5A

LIGHT SOURCE

• Main Source: 90W LED
• Halo Ring: 12 pcs RGB LED
• Average lifespan: 50000 hours

COLOR SYSTEM

• Color wheel: 7 colors + open
• 12 pcs RGB LED

ELECTRONICS

• Linear dimming: 0-100% Linear Dimmer
• Strobe: 1-25Hz

OPTICS

• Beam Angle: 1.5°

DYNAMICS EFFECTS

• Prism1: 16-facet rotating
• Prism2: 6-facet
• Gobo wheel: 7 gobos + open
• Color wheel: 7 colors + white

CONTROL

• DMX channels: 14CH

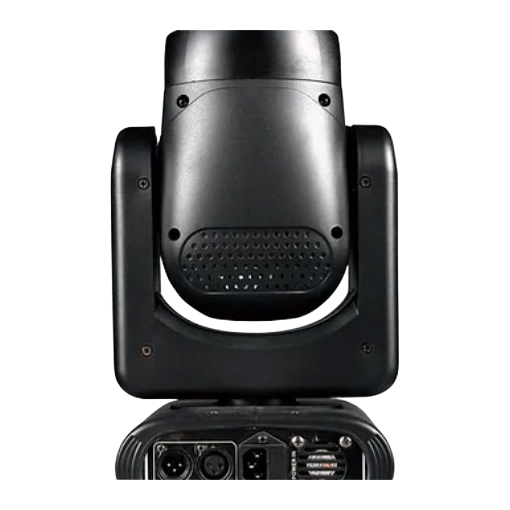

• DMX connector: 3-Pin XLR input and output
• Power connector: IEC Power in
• Control mode: DMX/Master-Slave/Auto/Sound
• Pan: 540°, 16bits scanning
• Tilt: 270°, 16bits scanning
• LED color display with 4 buttons

PHYSICAL

• IP Rating: IP20
• Housing color: black
• Working ambient temp.: -10°C to 40°C (-14°F to 104°F)
• Dimensions: 210*170*340mm / 8.3*6.7*13.4in
• Weight: 4.2kg / 9.3lb

Frequently Asked Questions - FAQ

1. What is the JUBARIS BEAM L90?
The JUBARIS BEAM L90 is a professional 90W LED moving head beam light designed for concerts, clubs, weddings, churches, theaters, and mobile DJ applications. It produces a powerful narrow beam with dynamic prism and gobo effects.

2. What light source does the JUBARIS BEAM L90 use?
The fixture utilizes a high-output 90W white LED engine that delivers bright, sharp aerial beam effects while offering long LED life and reduced maintenance.

3. What is the beam angle of the JUBARIS BEAM L90?
The JUBARIS BEAM L90 features an ultra-narrow beam angle of approximately 1.5°–2°, creating intense beam projections that cut through haze and fog.

4. Does the JUBARIS BEAM L90 include prism effects?
Yes. The fixture includes dual rotating prisms, typically featuring 16-facet and 6-facet prism effects, allowing users to create layered aerial patterns and split-beam effects.

5. Does it have gobo and color wheels?
Yes. The JUBARIS BEAM L90 includes a gobo wheel for beam pattern projections and a color wheel with multiple colors plus white for vibrant visual effects.

6. What control modes are available?
The fixture supports DMX512, Auto, Sound Active, and Master/Slave modes, making it suitable for both professional programming and plug-and-play operation.
