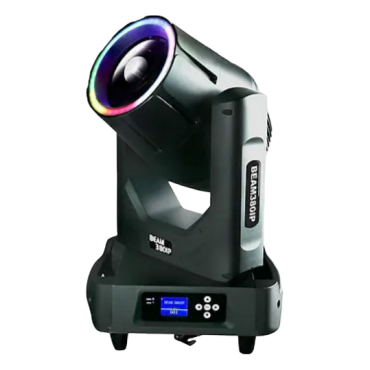

JUBARIS BEAM 380IP 380W IP65 Outdoor Moving Head

The JUBARIS BEAM 380IP is a professional IP65-rated outdoor moving-head beam fixture designed for concerts, stadiums and large-scale outdoor events.

Key Features:

• Intense 380W beam light output delivers powerful, sharp beams ideal for festivals, concerts, and large outdoor stages.
• Dual prisms with rotating and static gobos create vibrant, multi-layered effects with dramatic visual depth.
• RGB halo ring with built-in macro effects enhances lighting design with stunning ambient colors and creative versatility.
• IP65-rated waterproof beam light design ensures consistent, reliable performance under any weather conditions.
• Integrated clamps allow fast and secure mounting for touring setups, outdoor festivals, or permanent installations.
• Available in carton box packaging for versions with True 1 & 5-pin connectors.

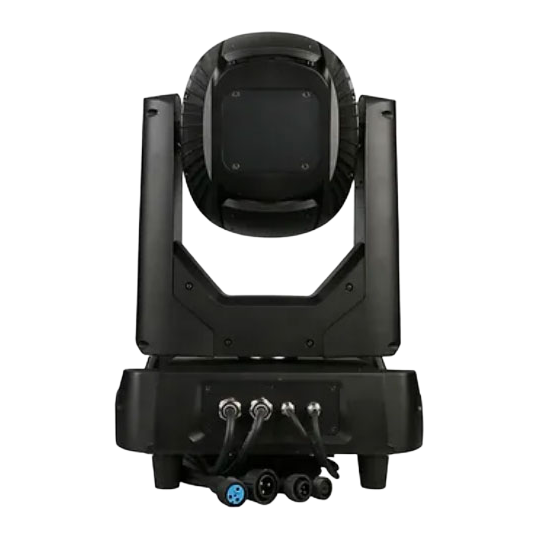

• Road case options include integrated waterproof cables and DMX connectors for professional-grade beam light setups.

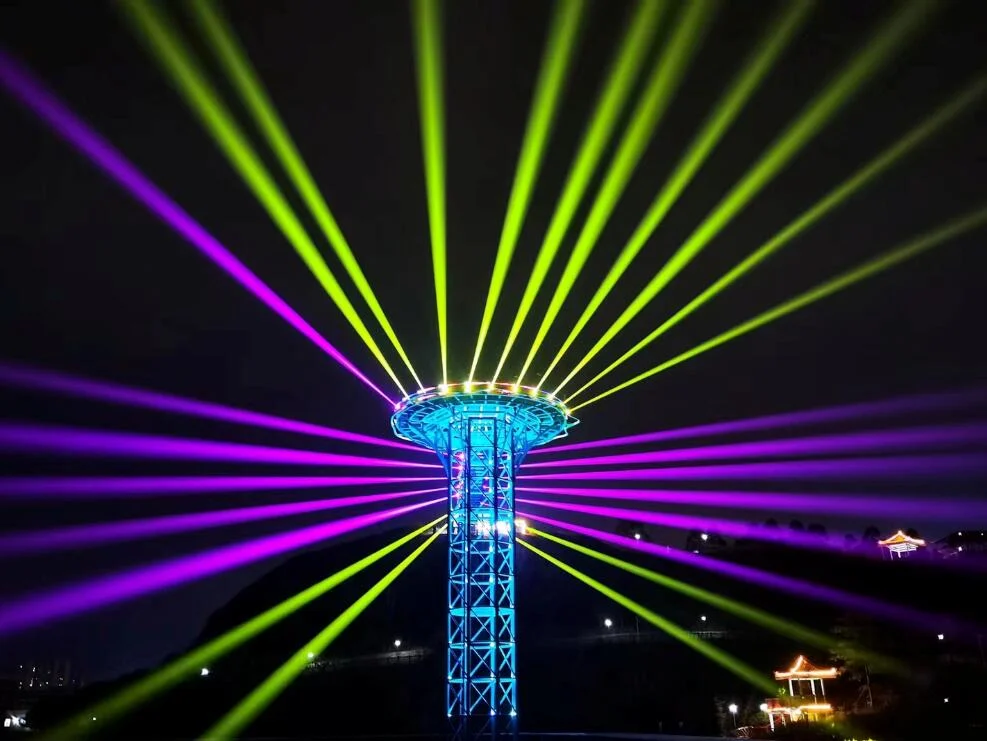

Powerful Beam Light with Intense 380W Output:

Engineered to deliver high-output illumination, the JUBARIS BEAM 380IP creates sharp, focused beams that cut through even the largest outdoor venues. Designed for festivals, concerts, and large-scale productions, this beam light ensures impactful lighting that commands attention and elevates every performance.

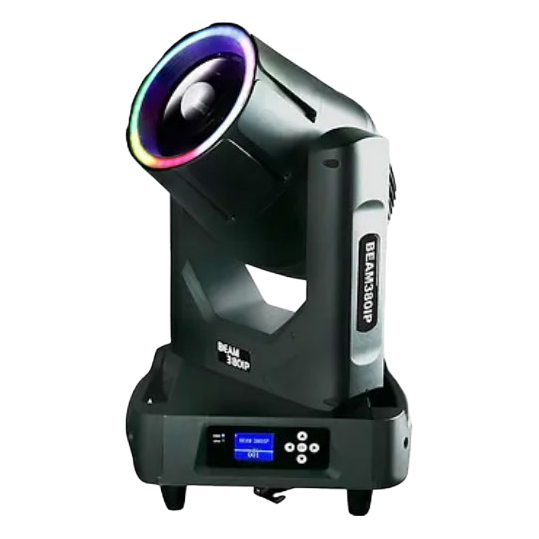

RGB Halo Ring with Dynamic Macro Effects:

This advanced beam light features an eye-catching RGB halo ring with a wide range of built-in macro effects perfect for creating stunning ambient lighting or enhancing the main light beams. The RGB ring integrates seamlessly with wash light and Moving Head Light modes, delivering rich color depth and creative flexibility for professional event lighting.

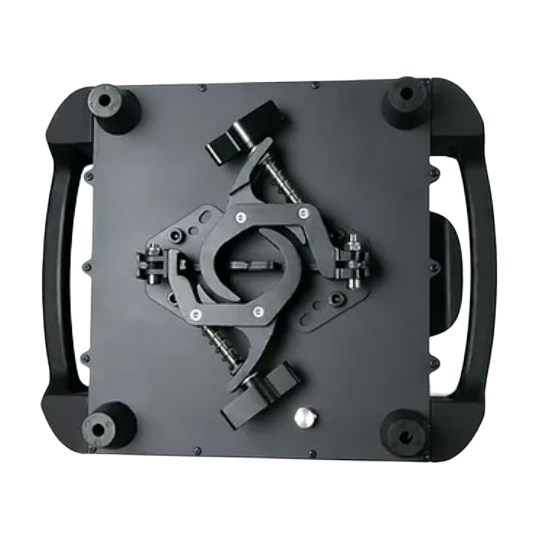

Integrative Clamps for Quick and Secure Mounting:

Designed for easy setup, it comes equipped with integrated clamps at the base, allowing for secure and efficient installation in various venues. These built-in clamps make mounting on trusses or lighting rigs simple and fast, ensuring that the beam light remains stable during performances. Ideal for touring productions, festivals, and fixed installations where speed and reliability matter.

Rotating Prism and Gobo Options for Dynamic Effects:

Equipped with dual prisms and both static and rotating gobo wheels, this beam light delivers multi-layered visual effects with exceptional depth and vibrancy. The result is enhanced visual impact for professional pro lighting setups and creative shows.

IP65 Waterproof Design for Outdoor Use:

With its IP65-rated waterproof housing, the JUBARIS BEAM 380IP is built for all-weather durability. It performs flawlessly at outdoor festivals, stadiums, and large-scale events, offering consistent output even in rain or dust. Perfect for LED Stage Lighting, led bar light, and dj lighting integrations, this fixture is the ultimate choice for reliable, powerful outdoor lighting solutions.

Specification

ELECTRICAL

• Input power: AC100-240V
• Power frequency: 50/60Hz
• Power: 450W

LIGHT SOURCE

• Source: 380W Lamp
• Lamp Average lifespan: 1200 hours

COLOR SYSTEM

• Color wheel: 14 static colors + open

ELECTRONICS

• Linear dimming: 0-100%
• Linear Dimmer Strobe: 1-25Hz

OPTICS

• Beam Angle: 2°

DYNAMICS EFFECTS

• Prism1: 12-facet rotating prism
• Prism2: 8+16 facet rotating prism
• Gobo: 12 static gobos + open + 5 glass gobos
• Color: 14 color gobos + open, split color, rainbow

CONTROL

• DMX channels: 19CH
• DMX connector: 5-Pin connector (Box Version) or 3-Pin with Iintegrated cable (Road Case Version)
• Power connector:Tru1 Connector (Box Version) or IP65 conector with integrated cable (Road Case Version)
• iControl mode: DMX/Master-Slave/Auto/Sound
• Pan: 540°, 16 bits scanning
• Tilt: 270°, 16 bits scanning
• LCD color display with 5 buttons

PHYSICAL

• IP Rating: IP65
• Housing color: black
• Working ambient temp.: -10°C to 40°C (-14°F to 104°F)
• Dimensions: 390*320*610mm / 15.4*12.6*24in
• Weight: 22kg / 48.5lb

Frequently Asked Questions - FAQ

1. What is the JUBARIS BEAM 380IP?
The JUBARIS BEAM 380IP is a high-performance 380W outdoor moving head beam fixture designed for concerts, festivals, stadiums, touring productions, and permanent outdoor installations. Its IP65-rated housing protects against rain, dust, and harsh weather conditions.

2. What light source does the JUBARIS BEAM 380IP use?
The fixture is powered by a 380W high-intensity discharge lamp that produces powerful, long-throw beam effects with exceptional brightness and aerial visibility.

3. Is the JUBARIS BEAM 380IP suitable for outdoor use?
Yes. The fixture features an IP65 waterproof and dustproof rating, making it ideal for outdoor concerts, festivals, theme parks, architectural lighting, and live events in challenging weather conditions.

4. What is the beam angle of the JUBARIS BEAM 380IP?
The JUBARIS BEAM 380IP produces an ultra-sharp beam with an approximate 2° beam angle, allowing it to create intense aerial effects over long distances.

5. Does the fixture include prism effects?
Yes. The fixture includes dual rotating prism systems, featuring a 12-facet prism and a combined 8+16 facet prism that can be layered to create complex aerial beam patterns.

6. What gobo options are available?
The JUBARIS BEAM 380IP includes static gobos and rotating glass gobos, enabling textured beam projections, dynamic patterns, and creative visual effects.
