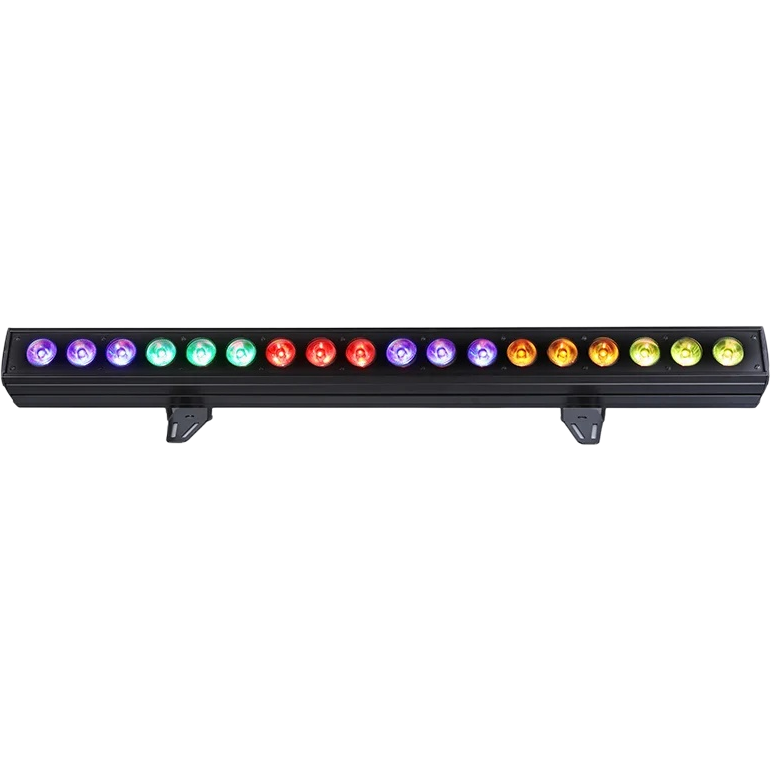

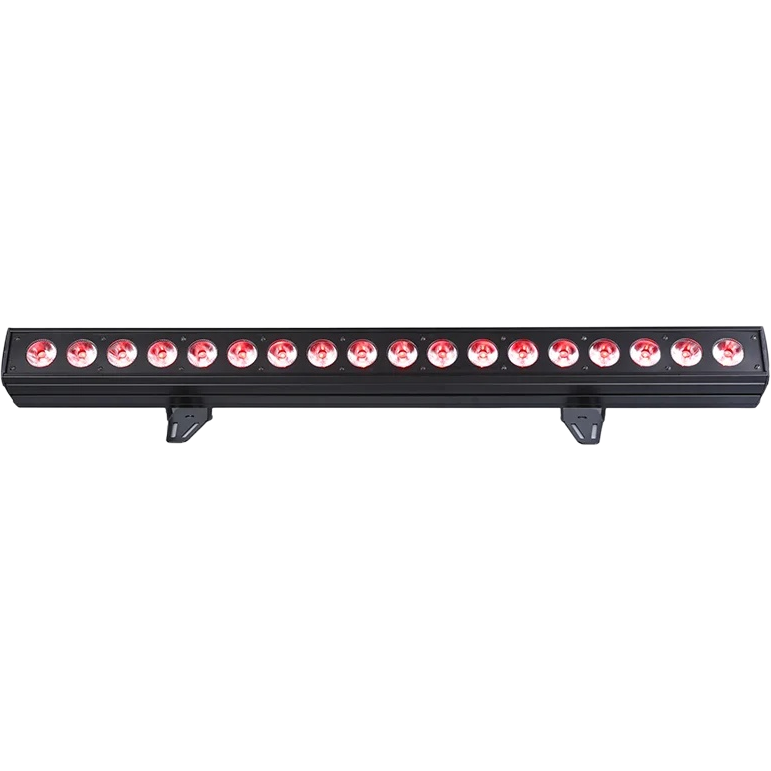

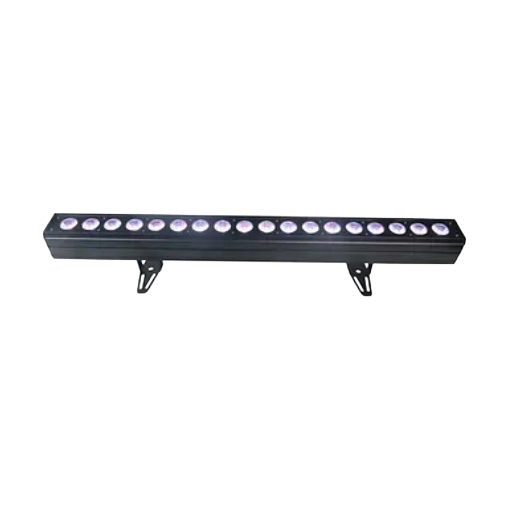

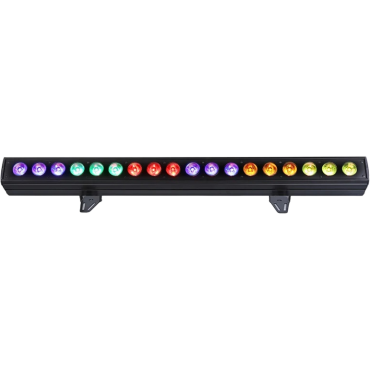

HUEWAVE PIXEL BAR 1810R – 18x10W RGBWA-UV LED Pixel Wash Bar

18x10W RGBWA-UV LED Pixel Control for Small Weddings, Corporate Events, Nightclubs, Bars, and Churches

Key Features:

• 18×10W 6-in-1 LEDs for rich, vibrant color mixing, delivering exceptional stage wash and wash lighting for various events.
• Creative pixel mapping with full control over each LED for stunning visual effects and dynamic lighting displays. Pre-programmed effects offer easy setup and dynamic lighting design right out of the box, delivering true pro lighting performance effortlessly.
• Compact and lightweight (9.48lb) light fixtures for easy transport and installation in small to large venues. These versatile light fixtures are perfect stage wash lights for small weddings, corporate events, nightclubs, bars, and churches, making them ideal for any event lighting setup.
• Two versions available, RGBWA-UV or RGBLA-UV, giving you flexible options for your wash light and dynamic lighting needs.

18x10W RGBWA-UV or RGBLA-UV LED with Motorized Zoom and Pixel Control for Small Weddings, Corporate Events, Nightclubs, Bars, and Churches

Efficient 18x10W RGBWA-UV or RGBLA-UV LED Lighting:

The HUEWAVE Pixel Bar is equipped with 18x10W 6-in-1 LEDs, providing a wide range of rich, vibrant colors and powerful wash lighting. Whether you're lighting up small weddings, corporate events, nightclubs, bars, and churches, this versatile DJ light brings bold, dynamic lighting that enhances the energy of any venue as versatile stage wash lights.

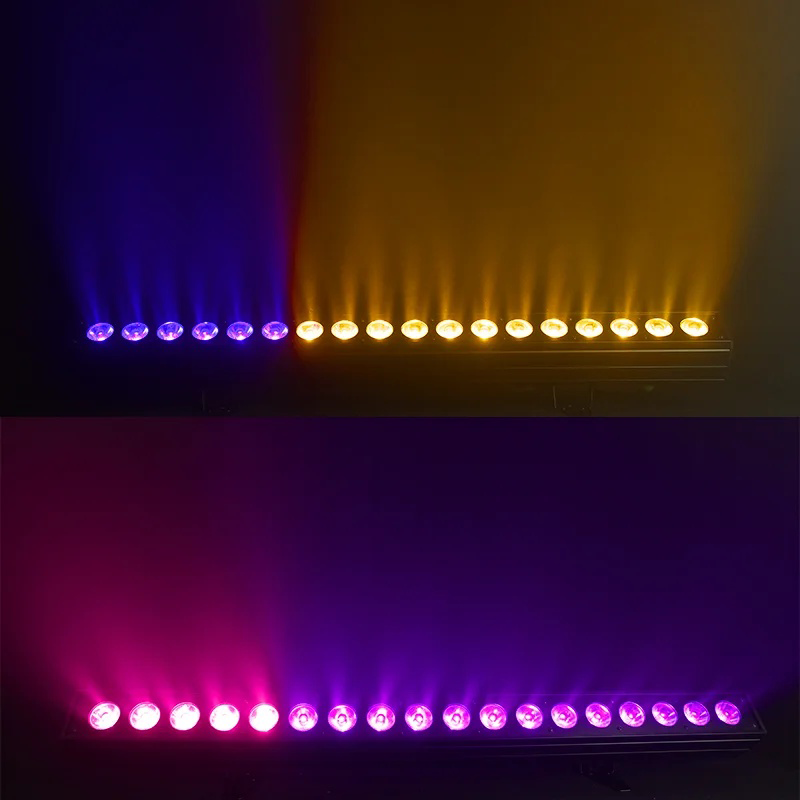

Creative Pixel Mapping and Pre-Programmed Effects:

Featuring pixel mapping and various built-in programs, the HUEWAVE Pixel Bar gives you full control over each LED, allowing you to create stunning visual effects and dynamic lighting scenes. Perfect for immersive light shows, these light fixtures help elevate your production and captivate your audience with brilliant wash light effects.

Lightweight and Compact for Easy Installation and Transport:

The SPL-LED-1810R is designed with a small form factor and weighs only 9.48lb, making it incredibly easy to install and transport. Its compact size ensures that it can be quickly set up in a variety of venues, from small bars to large stages, while its lightweight build allows for effortless handling. Whether you're moving from event to event or setting up for a permanent installation, the portability and ease of use make these light fixtures a practical choice for event planners and lighting technicians seeking reliable stage wash solutions.

Specification

ELECTRICAL

• Input power: AC100-240V
• Power frequency: 50/60Hz
• Power: 133W

LIGHT SOURCE

• Source: 18x10W RGBWA-UV LED
• Average lifespan: 50,000 hours

COLOR SYSTEM

• Color : RGBWA-UV

ELECTRONICS

• Linear dimming: 0-100% Linear Dimmer
• Strobe: 1-25Hz

OPTICS

• Beam Angle:15°

DYNAMICS EFFECTS

• 18x10W RGBWA-UV 6in1 LED
• Various built-in programms

CONTROL

• DMX channel:12/110CH

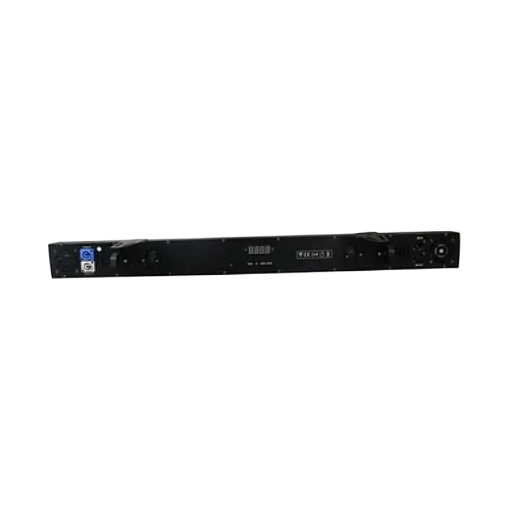

• DMX connector: DMX 3-Pin XLR input/output
• Power connector: PowerCon input/output
• Control mode:DMX/Master-Slave/Auto/Sound

PHYSICAL

• IP Rating:IP20
• Housing color: black
• Working ambient temp.:-10°C to 40°C (-14°F to 104°F)
• Dimensions:990*140*150mm/39*5.5*5.9in
• Weight:4.3kg/9.48lb

Frequently Asked Questions - FAQ

1. What is the HUEWAVE PIXEL BAR 1810R used for?
The HUEWAVE PIXEL BAR 1810R is designed for stage lighting, concerts, weddings, churches, nightclubs, corporate events, and architectural lighting applications. It delivers vibrant wash effects and dynamic pixel-mapping visuals.

2. How many LEDs does the HUEWAVE PIXEL BAR 1810R have?
It features 18 high-output 10W RGBWA-UV (6-in-1) LEDs, providing rich color mixing and bright illumination.

3. Does the HUEWAVE PIXEL BAR 1810R support pixel control?
Yes. The fixture offers individual pixel control, allowing users to create advanced chase effects, animations, and custom pixel-mapped lighting designs.

4. What control modes are available?
The unit supports DMX512, Auto, Sound Active, Master/Slave, and RDM control modes for flexible operation in various lighting environments.

5. How many DMX channels does it support?
The HUEWAVE PIXEL BAR 1810R supports multiple DMX channel modes, including 12-channel and 110-channel configurations.

6. What colors can the fixture produce?
Thanks to its RGBWA-UV LEDs, the fixture can generate millions of colors, including vibrant reds, greens, blues, whites, ambers, UV effects, and smooth mixed-color combinations.
