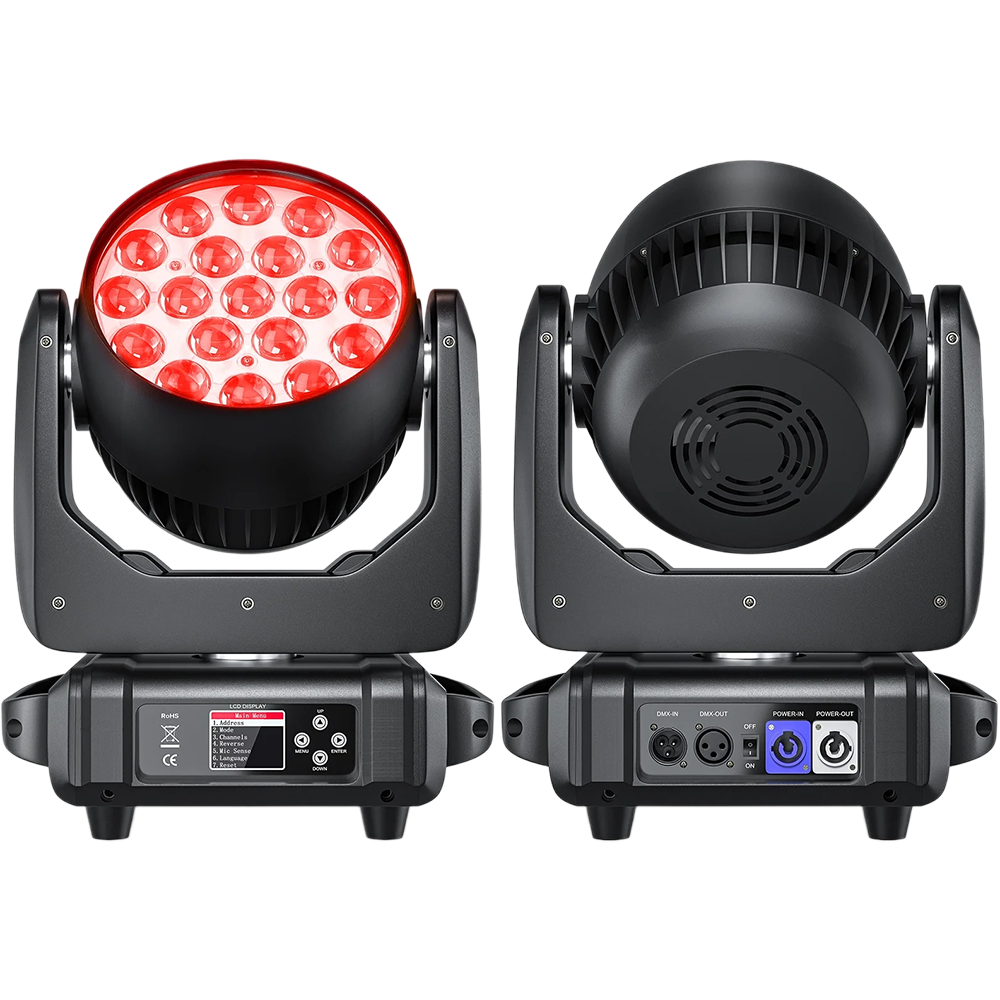

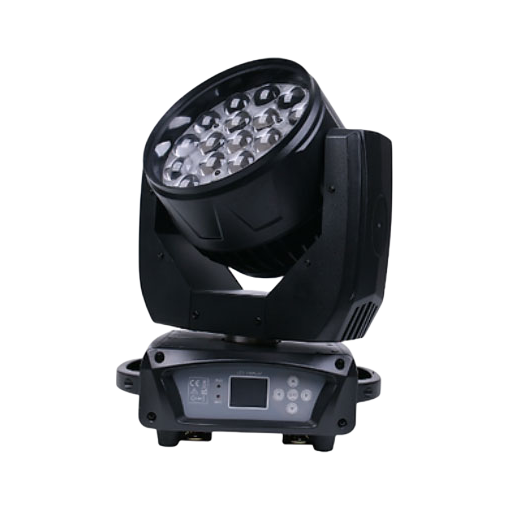

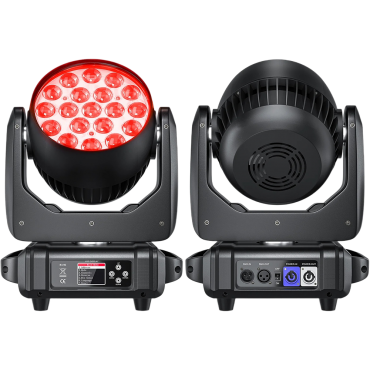

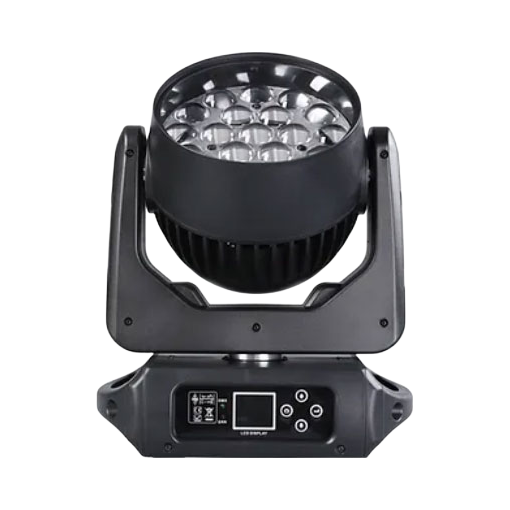

HUEWAVE MOVING HEAD 1915Z – 19x15W RGBW LED Zoom Wash Moving Head

Zoom moving head with powerful output and smooth zoom capability. Versatile for both tight beam and wide wash applications.

Key Features:

• 19×15W RGBW LEDs provide vivid color mixing for bold washes and subtle tones
• 10°–60° motorized zoom allows for narrow beams or wide-area coverage
• Built-in macro effects offer instant, professional-looking lighting scenes
• 3-ring segment control enables creative, layered visual effects
• DMX control (16/24 channels) with 3-pin XLR and PowerCon for flexible setup
• 540° pan / 270° tilt with magnetic encoders for smooth and precise positioning
• Ideal for live shows, stage productions, corporate events, and touring setups

RGBW LED Wash Moving Head with Dynamic Zoom and Macro Effects for Live Performances, Stage Productions, and Corporate Events

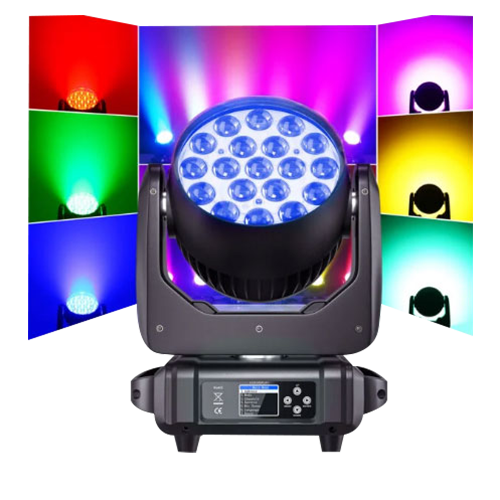

19x15W RGBW LEDs with Color Mixing:

Powered by 19 high-output 15W RGBW LEDs, this fixture provides brilliant color mixing for vibrant washes and stunning effects. Its rich color palette allows you to create dynamic scenes, from bold, saturated hues to subtle pastel tones.

Precision Zoom and Built-in Macro Effects:

The adjustable zoom range of 10° to 60° ensures versatility in coverage, allowing for both narrow beams and wide washes. The built-in macro effects further enhance the fixture’s flexibility, offering pre-programmed scenes that simplify setup while delivering professional lighting results.

DMX Control with Flexible Connectivity:

Equipped with DMX control through 16 or 24 channels, the HUEWAVE Moving Head 1915Z integrates seamlessly into your lighting rig. Its 3-pin XLR input/output and PowerCon connections ensure easy installation, while Master-Slave and Auto modes offer additional operational flexibility.

3-Ring Segment Control for Creative Effects:

This fixture features 3-ring segment control, allowing you to independently control different sections of the LEDs for unique and dynamic lighting combinations. The ability to customize the lighting output in separate rings offers endless creative possibilities, from intricate patterns to complex color transitions.

Pan and Tilt with Non-Touching Magnetic Encoder Positioning:

Designed with smooth, precise movement, the pan (540°) and tilt (270°) are controlled via 16-bit encoders for exact positioning. The non-touching magnetic encoder system ensures accuracy and durability during operation.

Specification

ELECTRICAL

• Input power: AC100-240V
• Power frequency: 50/60Hz
• Power consumption: 230W

LIGHT SOURCE

• Source: 19*15W RGBW LED
• 5840LUX at 5m (full on)
• Average lifespan: 50000 hours

COLOR SYSTEM

• RGBW color mixing

ELECTRONICS

• Linear dimming: 0-100% Linear Dimmer
• Strobe: 1-25Hz

OPTICS

• Beam Angle: 10°-60°

DYNAMICS EFFECTS

• Zoom
• Built-in macro effects
• Color mixing

CONTROL

• DMX channels: 16/24CH
• DMX connector: 3-Pin XLR input/output
• Power connector: PowerCon input/output
• Control mode: DMX/Master-Slave/Auto/Sound
• Pan: 540°, 16bits
• Tilt: 270°, 16bits

PHYSICAL

• IP Rating: IP20
• Housing color: black
• Working ambient temp.: -10°C to 40°C (-14°F to 104°F)
• Dimensions: 325*293*542mm / 12.8*11.5*21.3in
• Weight: 8.5kg / 18.7lb

Frequently Asked Questions - FAQ

1. What is the HUEWAVE MOVING HEAD 1915Z?
The HUEWAVE MOVING HEAD 1915Z is a professional RGBW LED zoom wash moving head designed for concerts, churches, theaters, corporate events, nightclubs, and touring productions. It combines high-output LEDs, motorized zoom, and advanced pixel effects in a compact fixture.

2. What light source does the HUEWAVE MOVING HEAD 1915Z use?
The fixture is powered by 19 × 15W RGBW LEDs, delivering vibrant color mixing, bright washes, and smooth color transitions.

3. What is the zoom range of the HUEWAVE MOVING HEAD 1915Z?
The motorized zoom system offers an adjustable beam angle from 10° to 60°, allowing the fixture to create both narrow beam effects and wide wash coverage.

4. Does the fixture support pixel mapping and ring control?
Yes. The HUEWAVE MOVING HEAD 1915Z features 3-ring segment control, enabling independent control of LED zones for pixel-mapping effects, color chases, and dynamic visual patterns.

5. What color system does the fixture use?
The fixture utilizes RGBW color mixing, producing vivid saturated colors, pastel shades, and clean white output for versatile lighting designs.

6. Does the HUEWAVE MOVING HEAD 1915Z include built-in effects?
Yes. It features built-in macro effects and color macros that allow users to quickly create professional lighting looks without extensive programming.
