Core 3×3

$799.99
$449.99
Availability: In stock

Availability: In stock

$799.99
$449.99

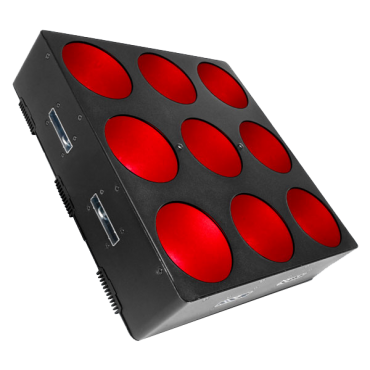

Core 3×3 combines a pixel-mapping effect and a powerful LED wash. Powered by nine RGB LEDs with chip-on-board (COB) technology, it utilizes a unique reflector cup to produce large pixels of light and create intriguing sweeping and chasing effects. You can easily combine multiple units using built-in coffin locks to construct an impressive array capable of large scale animations and chases.
Qty:

Details

Core 3×3 combines a pixel-mapping effect and a powerful LED wash. Powered by nine RGB LEDs with chip-on-board (COB) technology, it utilizes a unique reflector cup to produce large pixels of light and create intriguing sweeping and chasing effects. You can easily combine multiple units using built-in coffin locks to construct an impressive array capable of large scale animations and chases.



Highlights
  • Compact, LED panel designed for use as a pixel mapping effect, blinder or wash light
  • Easily trigger built-in automatic and sound activated programs for a stunning show in seconds
  • Produce a full spectrum of light with excellent color mixing using COB technology
  • Quickly and securely connect multiple fixtures together with built-in coffin locks
  • Create animations and video effects with individual LED control
  • Withstand the harshness of traveling from gig to gig with a robust housing
  • Generate complex looks with ease using ShowXpress™ Pixels
  • Achieve flicker-free video operation with high-frequency LED dimming
  • Save time running cables and extension cords by power linking multiple units
  • Silent operation due to built-in fan control
  • Sound-activated programs dance to the beat of the music
  • Generate a synchronized show in master/slave mode with easy access to built-in automated programs

Specifications
  • DMX Channels: 3, 5, 9, 27, or 31
  • DMX Connectors: 3-pin XLR
  • Light Source: 9 LEDs (tri-color RGB) 9 W (1.5 A), 50,000 hours life expectancy
  • Strobe Rate: 0 to 20 Hz
  • PWM Frequency: 1.1 KHz
  • Beam Angle: 47°
  • Illuminance: 1,025 lux @ 2 m
  • Power Linking: 3 units @ 120 V; 7 units @ 230 V
  • Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
  • Power and Current: 226 W, 1.9 A @ 120 V, 60 Hz 226 W, 0.9 A @ 230 V, 50 Hz
  • Weight: 13.6 lb (6.2 kg)
  • Size: 6.2 x 13.6 x 13.6 in (156 x 344 x 344 mm)
  • Approvals: CE
Manufacturer Chauvet DJ
