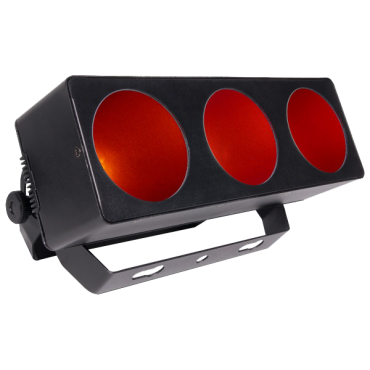

Core 3×1

Core 3×1 combines a pixel-mapping effect and a powerful linear wash light into one unique, multipurpose fixture. Powered by three RGB LEDs with chip-on-board (COB) technology, it utilizes a unique reflector cup to produce large pixels of light and create intriguing sweeping and runway chase effects that become the core of your lighting display.

• Compact, tri-color LED strip light designed for use as a pixel-mapping effect, blinder or wash light
• Easily trigger built-in automatic and sound activated programs for a stunning show in seconds
• Produce a full spectrum of light with excellent color mixing using COB technology
• Create animations and video effects with individual LED control
• Completely silent operation
• Withstand the harshness of traveling from gig to gig with a robust housing
• Generate complex looks with ease using ShowXpress™ Pixels
• Achieve flicker-free video operation with high-frequency LED dimming
• Save time running cables and extension cords by power linking multiple units
• Sound-activated programs dance to the beat of the music
• Generate a synchronized show in master/slave mode with easy access to built-in automated programs

• DMX Channels: 3, 5, 9, 10 or 13
• DMX Connectors: 3-pin XLR
• Light Source: 3 LEDs (tri-color RGB) 9 W (1.5 A), 50,000 hours life expectancy
• Strobe Rate: 0 to 20 Hz
• PWM Frequency: 1.1 KHz
• Beam Angle: 47°
• Illuminance: 340 lux @ 2 m
• Power Linking: 10 units @ 120 V; 21 units @ 230 V
• Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
• Power and Current: 79 W, 0.6 A @ 120 V, 60 Hz 79 W, 0.3 A @ 230 V, 50 Hz
• Weight: 8.2 lb (3.7 kg)
• Size: 8.7 x 13.7 x 4.6 in (222 x 347 x 116 mm)
• Approvals: CE
