Chauvet DJ CoDot ILS

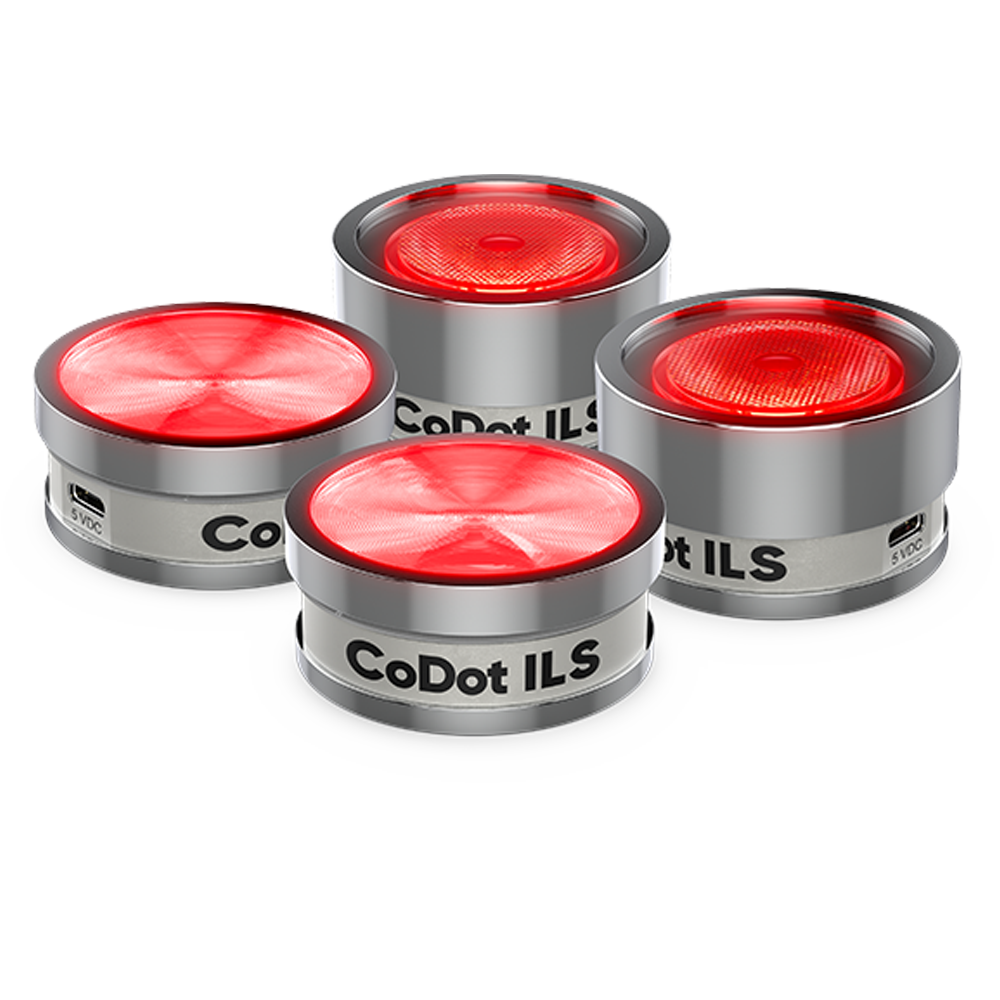

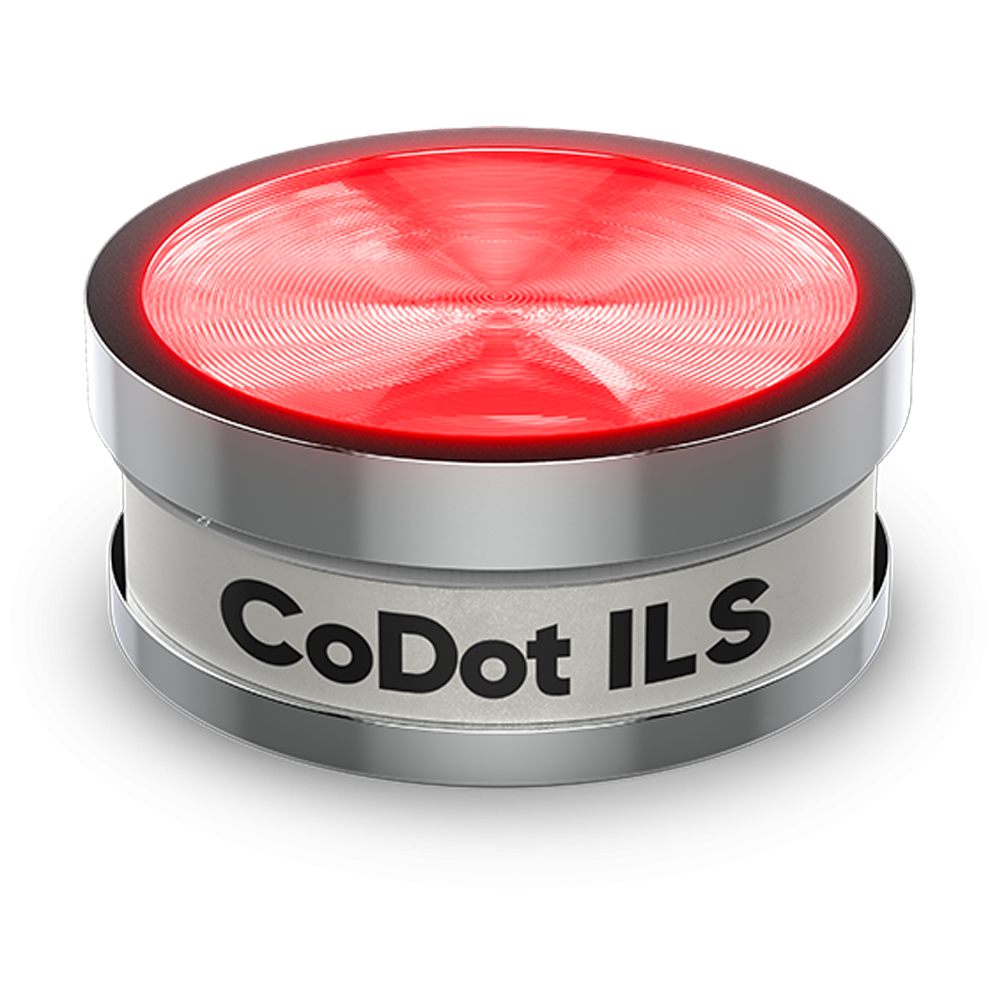

Party lighting fits in the palm of your hand with CoDot ILS. This puck-sized LED illuminator is the perfect solution for small spaces where conventional fixtures can't fit. Each CoDot ILS has 1 quad-color (RGBW) LED to suit a range of applications. With D-Fi, ILS, and RF compatibility, this fixture works with the lighting control that best suits your needs. Make any area of your venue shine with CoDot ILS.

Chauvet DJ CoDot ILS Features:

• Coin-sized LED illuminator designed for small applications where conventional fixtures won't fit
• Includes two lens options to meet different application criteria
• Magnetic base easily mounts to metal surfaces
• Threaded insert is compatible with camera tripods and accessories
• ILS compatibility for use in the ILS ecosystem
• Built-in DFI transceiver communicates DMX or ILS signals wirelessly
• Built-in RF receiver for wireless control using the RFC or RFC-XL optional remotes
• Easy navigation and access all functions directly from the LED display
• Power linking multiple units from the USB type-C in and out

Chauvet DJ CoDot ILS Specifications:

• DMX Channels : 4 or 6
• Max Unobstructed Distance : 600 ft (183 m)
• Light Source : 1 LED (quad-color RGBW) 3 W, (0.8 A), 50,000 hours life expectancy
• Strobe Rate : 0 to 20 Hz
• Operating Frequency : 2.4 GHz
• Power Linking : 4 units @ 120 V; 4 units @ 230 V
• Input Voltage : 100 to 240 VAC, 50/60 Hz (auto-ranging)
• Weight : 0.2 lb (.1 kg)
• Size : 2.2 x 2.1 x 0.9 in (57 x 54 x 24 mm)
• Approvals : CE, ROHS, UKCA, FCC
• Beam Angle (installed lens) : 19°
• Beam Angle (included lens) : 14°
• Illuminance (installed lens) : 256 lux @ 2 m
• Illuminance (included Lens) : 442 lux @ 2 m
• Operating Frequency : 2.4 GHz
• Power and Current : 7 W, 0.1 A @ 120 V, 60 Hz
• Power and Current : 7 W, 0.1 A @ 230 V, 50 Hz
• Optional Controllers : ILS Command, RFC, RFC-XL
• Threaded Insert : M6 thread

WHAT'S INCLUDED

• (4) CoDot ILS
• (8) lenses
• (3) short USB cables (0.5m)
• (3) long USB cables (2m)

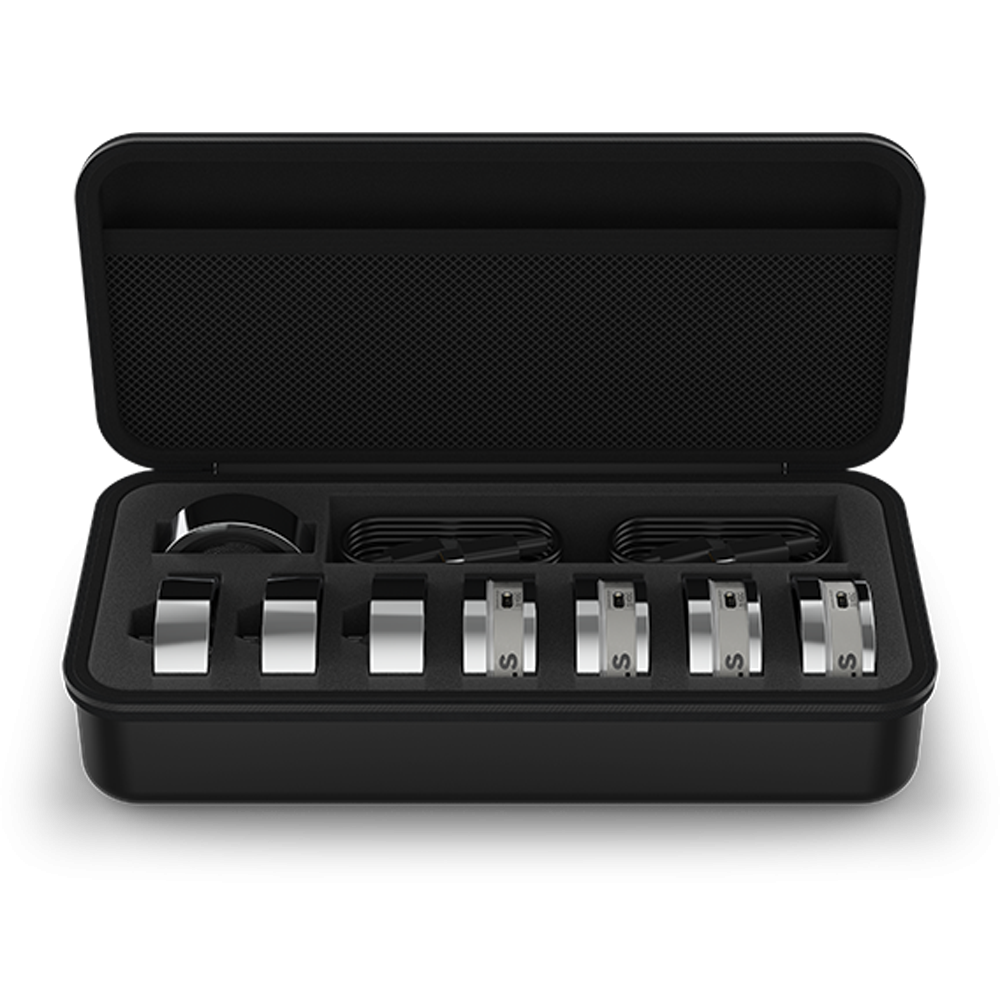

• (1) carry case
• (1) external power supply
• Quick Reference Guide
