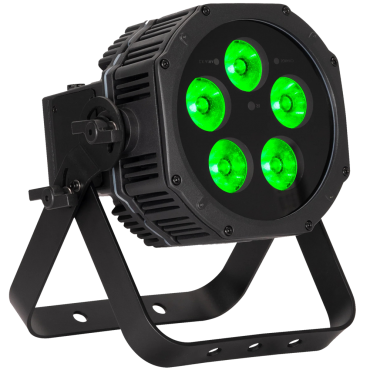

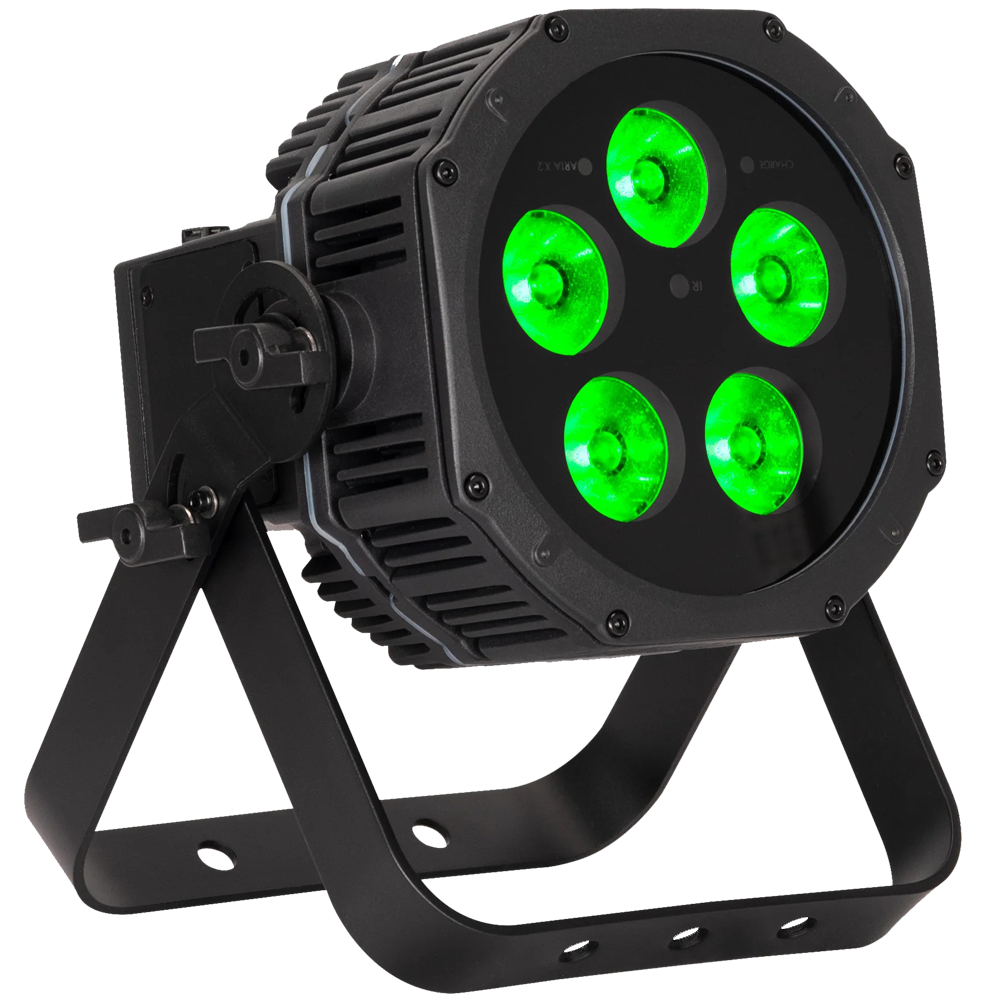

ADJ Mirage Par H IP

Mirage Par H IP is an IP65-Rated, battery-powered, wireless DMX versatile LED Par designed for modern professionals looking for dynamic lighting solutions for event productions, installations and staging applications.

The Mirage Par H IP LED fixture is a versatile, high-performance lighting solution, perfect for events, installations, and stage productions. Equipped with five 20W Hex Color RGBAL+UV LEDs, it delivers a dynamic range of color, including lime and UV for unique lighting effects. With an adjustable white color temperature from 2,700K to 9,900K, the Mirage Par H IP allows access to a massive gamut of colors.

This light can be powered via wall outlet or its rechargeable lithium-ion battery, providing user-selected 5 to 20 hours of operation. Control options are expansive, including DMX512, Aria X2 wireless system for over-the-air firmware/software updates, Bluetooth, RDM, and an IR remote. With a robust IP65-rated housing, it is weather-resistant, making it ideal for outdoor or indoor use.

Advanced features include variable refresh rates (900Hz to 25K), six dimming modes, four dimming curves, built-in programs, and electronic strobing and full dimming, giving users complete control over intensity and effects.

The Mirage Par H IP is both compact and rugged, ensuring easy setup, striking, and transport. This versatile LED Par is designed for lighting professionals who need reliability, color versatility, adaptable power options, and all-weather protection in one durable package.

Features:

• 5 Pixel, Hex Color LED (RGBAL+UV) LED Par - Battery or Wall Powered
• Battery operation selectable by user: 5 to 20 hours
• Built-In Programs
• Variable White Color Temperature Control (2,700K ~ 9,900K)
• User Selectable LED Refresh Rates (900Hz ~ 25K)
• 6 User-Selectable Dim Modes
• 4 User-Selectable Dim Curves
• Electronic Strobe (0.3Hz ~ 11Hz)
• Electronic Dimming

Specifications:

• Source:
  • (5) 20W Hex Color RGBAL+UV LEDs
  • 50,000 Hour Average Life
  • Note: May vary depending on environmental conditions, power/voltage, usage patterns, control, and dimming.
• Optical:
  • White Color Temperature Range: 2,300K ~ 9,900K
  • Beam Angle: 17°
• Physical:
  • IP65 Housing

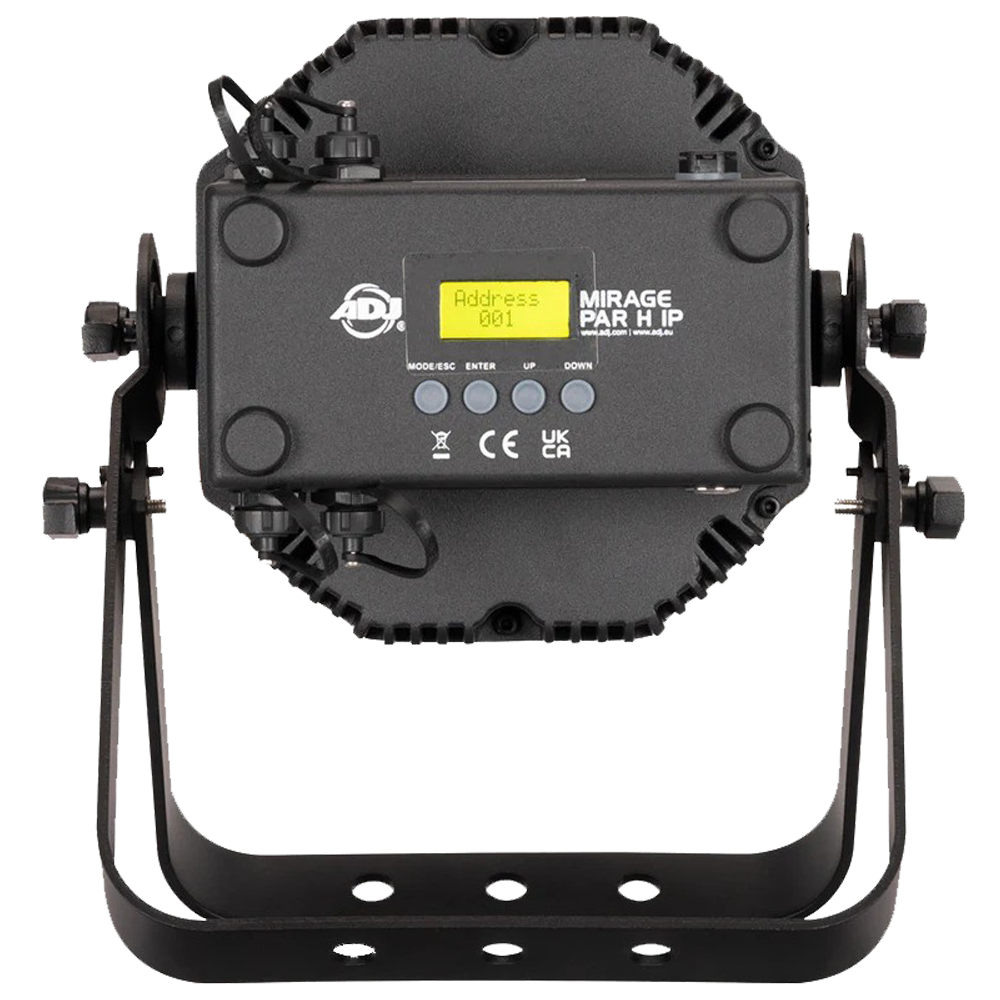

  • Digital Display

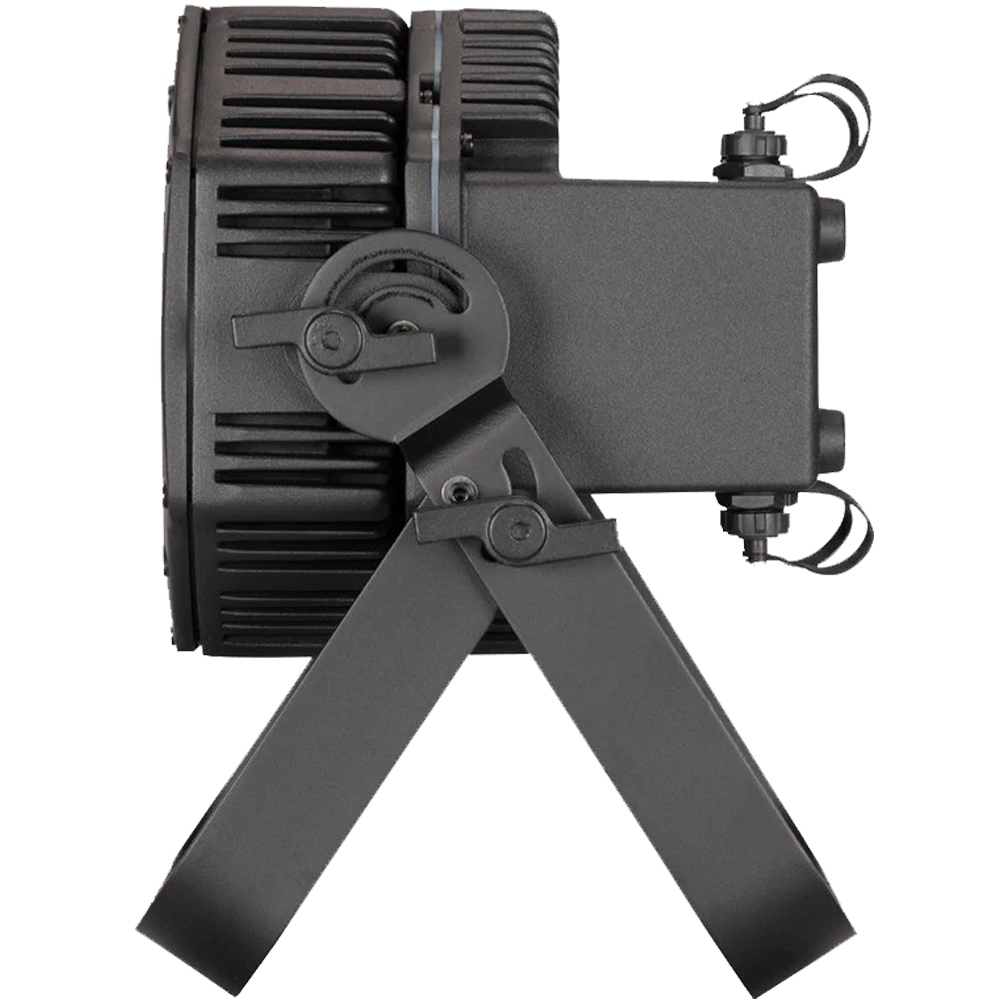

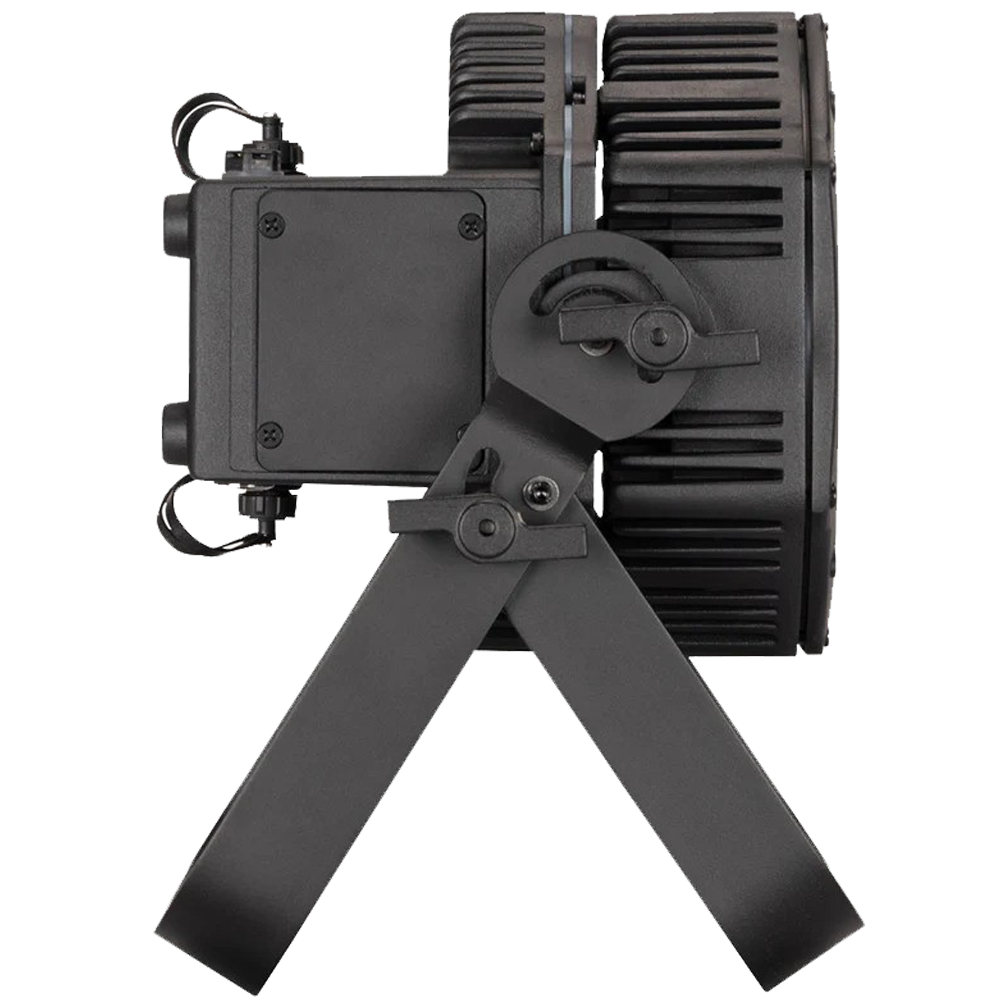

  • Adjustable Hanging / Kickstand Bracket
• Control:
  • DMX512
  • Aria X2 Wireless Management / DMX System
  • Bluetooth
  • RDM and RDM Net Compatible
  • IR (Includes UCIR24 Wireless Remote)
  • (6) DMX Channel Modes (5, 6, 9A, 9B, 15 & 17 Channel modes)
  • On-board Manual Control Mode
  • Primary / Secondary Mode

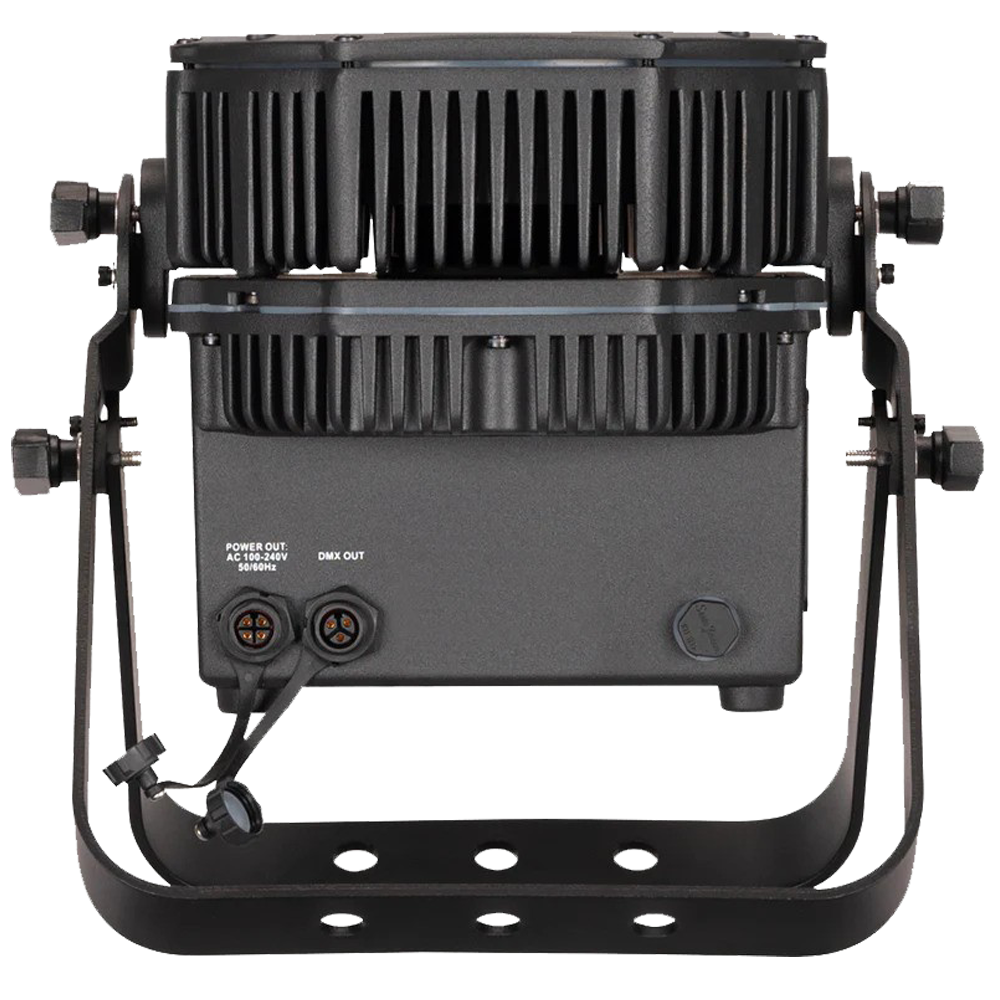

• Connections:
  • Chogori IP65 Data Locking Connectors
  • Chogori IP65 Power Connectors
• Dimensions & Weight:
  • Length: 11.1" (282mm) x 10.6" (269mm) x 10.4" (265mm)
  • Weight: 11.9 lbs. (5.4 kg)
• Power:
  • AC100-240V / 50Hz-60Hz Input
  • 60W Power Consumption
  • Link 14 units @120VAC or 28 units @230VAC
• Battery:
  • Rechargeable Lithium-ion
  • Battery Capacity: 6,600mAh
  • Battery Voltage: 22.2V
  • Charge Time: 5 Hours (To Full)
  • Battery operation selectable by user for 5-20 hours
  • 5 Hour duration = Full Output when fully charged
  • Battery Cycles: 500
• Thermal:
  • Ambient Operating Temperature: -4°F to 104°F (-20°C to 40°C)
  • Storage Temperature: -22°F to 113°F (-30°C to 45°C)
• Certifications & IP Rating:
  • CE
  • cETLus (Pending)
  • FCC
  • IP65
• Included Accessories:
  • (1) WIF901-POWER CABLE - IP65 Chogori to Edison Locking Power Cable
  • (1) CHS5INDMX (CHS366) - 20" Chogori to Seetronic 5-pin, IP65 Male Input XLR Adapter
  • (1) CHS5OUTDMX (CHS373) - 20" Chogori to Seetronic 5-pin, IP65 Female Output XLR Adapter
  • (1) Floor / Mounting Bracket
  • (1) UCIR24 Remote
• Optional Accessories:
  • CHS5INDMX (CHS366) - Replacement 20" Chogori to Seetronic 5-pin IP65 Male Adapter
  • CHS5OUTDMX (CHS373) - Replacement 20" Chogori to Seetronic 5-pin IP65 Female Adapter
  • CHSIP65PIN (CHS386) - 10" Chogori to Seetronic IP65 Power Input Cable
  • CHSIP65POUT (CHS399) - 10" Chogori to Seetronic IP65 Power Output Cable
  • WIF901-POWER CABLE - Replacement Chogori to IP65 Locking Power Cable
