ADJ Inno Pocket Z4 Duo Package

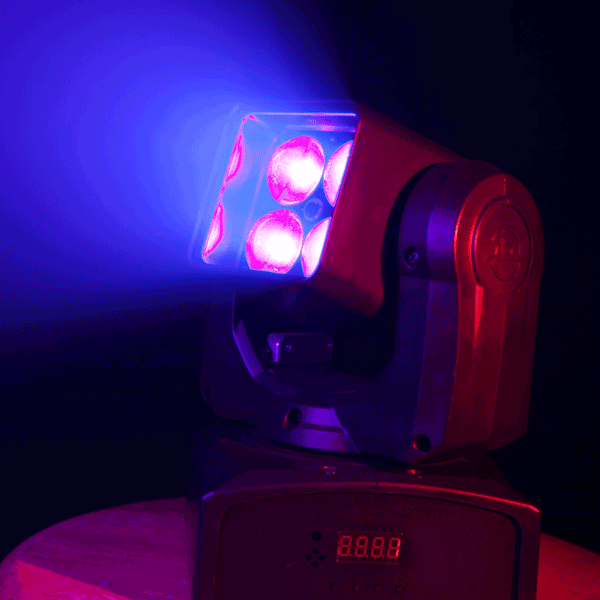

The Inno Pocket Z4 is a mini ZOOM Moving Head that creates beautiful washes of color with its 10-60-degree beam angle. Its compact size and lightweight makes it ideal for mobile entertainers, small club and bars, roller rinks, bowling centers, churches or any mobile production.

Featuring 4 x 10W 4-IN1 Quad LEDs (RGBW - Red, Green, Blue and White), the Inno Pocket Z4 will give pure lighting excitement with its fast moving head and brilliant washes of color. It has a pan and tilt inversion mode that makes one head do the opposite of another when linked together.

Users may control the Inno Pocket Z4 by Sound activation with its 4 built-in shows, the optional UC IR wireless remote, or use a DMX controller to create your own light shows.

American DJ UC-IR Universal Controller for ADJ Lighting Fixtures

The UC-IR infrared remote has many different functions and gives you complete control of your fixtures.

Control the dimmer, Full ON, blackout, gobo, colors, shows, programs, speed, and sound active modes of your fixtures.

Inno Pocket Z4 Specifications

• High output mini Moving Head with a bright 4 x 10W Quad RGBW LED source
• 3 Operational modes: DMX Control, Sound Active Mode & Show Mode
• 3 DMX Channel Modes: 16/19/22
• 4 Built-in shows
• Stand Alone Set Up or Master-Slave Configuration
• Beam Angle: 10 - 60-degrees
• 540° pan / 180° tilt (8-bit & 16-bit)
• Full ZOOM 10-60 Degrees
• Pan /Tilt Inversion mode
• 5 selectable Dim Curves (Standard, Stage, TV, Architectural & Theatre)
• Shutter: Pulse effect; random strobe slow to fast
• Dimming: 0% - 100%
• Display Inversion Mode
• Mounting bracket included
• Linkable: DMX via 3-pin XLR cable
• Optional ADJ UC IR wireless remote control (ADJ UC IR Not Included)
• Power consumption: 67W (Full-On)
• Multi-voltage Operation: AC 100 - 240V, 50/60Hz
• LED Source: 4 x 10W 4-in-1 RGBW LED source (Rated at approximately 50,000 hrs)
• Dimensions (LxWxH): 5.5” x 6.75” x 9.75” / 141 x 174 x 247mm
• Weight: 7 lbs. / 3.2 kgs

The UC-IR Remote from ADJ is compatible with ADJ's following products :

• Inno Pocket Spot
• Inno Pocket Z4
• Inno Pocket Spot Pearl
• Inno Pocket Roll
• Inno Pocket Scan
• Monster Duo
• Monster Quad
• Monster Fun
• Rotobeam 4
• Ricochet
• Quad Phase HP
• LED UV Go
• Pinspot LED Quad
• Pinspot LED Quad DMX

This Package Includes:

(2) ADJ Inno Pocket Z4
(1) American DJ UC-IR Universal Controller for ADJ Lighting Fixtures
(2) Universal O-Clamps With Snug Fit Grip
(1) 10FT Sure-Fit DMX Connecting Cable
(1) Properly Fitting & Durable Protective Transport Case

Each Inno Pocket Z4 Box Includes:

(1) ADJ Inno Pocket Z4
(1) Power Cord
(1) User Guide
(1) Pre-installed Mounting Bracket

The ADJ UC-IR Box Includes:

(1) American DJ UC-IR Universal Controller for ADJ Lighting Fixtures
(1) QuickStart Guide
