The Inno Pocket Spot LZR is a mini Moving Head with a bright 12-Watt LED source. Its compact size and lightweight makes it ideal for mobile entertainers, small club and bars, roller rinks, bowling centers or any mobile production.
Featuring 7 colors plus white, 7 gobos plus spot and separate color & gobo wheels. The Inno Pocket Spot LZR will give pure lighting excitement with its fast moving beams and color changes. It has a pan and tilt inversion mode that makes one head do the opposite of another when linked together.
Other control methods include: Sound active with 4 built-in shows, or use a DMX controller to create your own light shows. The Inno Pocket Spot LZR is compatible with the UC IR wireless remote and the Airstream IR control App for iOS mobile devices.

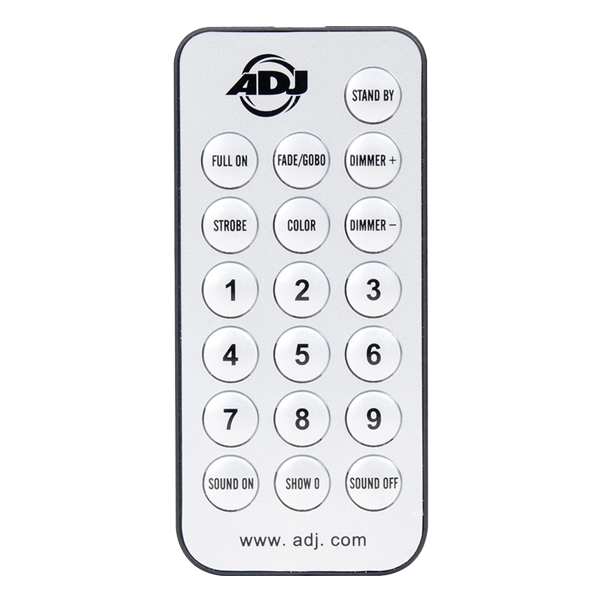

American DJ UC-IR Universal Remote Control for ADJ Lighting Fixtures
The UC-IR infrared remote has many different functions and gives you complete control of your fixtures.
Control the dimmer, Full ON, blackout, gobo, colors, shows, programs, speed, and sound active modes of your fixtures.
American DJ Inno Pocket Spot LZR Specifications
- High output mini Moving Head with a bright white 12W LED source.
- Green Laser: 30mW (532nm) Green laser.
- 7 Colors + white & Split Colors.
- 7 fixed gobos + spot.
- Separate color & gobo wheels.
- Manual focus.
- 3 Operational modes: DMX, Sound Active & Internal Show control modes.
- 3 DMX channel modes: 13/14/16 Channels.
- 4 Built-in shows.
- Gobo Shake effect.
- Gobo scroll mode.
- Beam Angle: 13-degrees.
- 540° pan / 230° tilt (16-bit).
- Pan /Tilt Inversion mode.
- 5 selectable Dim Curves (Standard, Stage, TV, Architectural & Theatre).
- Shutter: Pulse effect; random strobe slow to fast.
- Dimming: 0% - 100%.
- Fan Cooled.
- Omega bracket included.
- Linkable: DMX via 3-pin XLR cable.
- Compatible with ADJ UC IR Remote (sold Separately) & Airstream IR .
- Power consumption: 41.6W.
- Multi-voltage Operation: AC 100 - 240V, 50/60Hz.
- LED Source: 12W White LED source (Rated at approximately 50,000 hrs).
- Dimensions (LxWxH): 6.25” x 5.75” x 10.5” / 159 x 147 x 265mm.
- Weight: 7 lbs. / 3.4 kgs.
The UC-IR Remote from ADJ is compatible with ADJ's following products :
Inno Pocket Spot
- Inno Pocket Spot Pearl
- Inno Pocket Roll
- Inno Pocket Scan
- Monster Duo
- Monster Quad
- Monster Fun
- Rotobeam 4
- Quad Phase HP
- LED UV Go
- Pinspot LED Quad
- Pinspot LED Quad DMX
- VF Snow Flurry HO

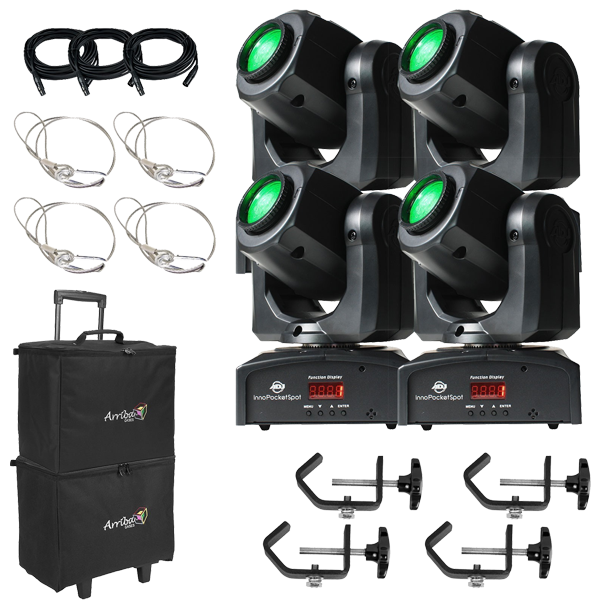

This Package Includes:
(4) ADJ Inno Pocket Spot LZR
(1) ADJ UC-IR universal remote control
(3) 10FT Sure-fit DMX connecting cables
(4) Universal C-Clamps with snug fit grip
(2) Properly fitting stackable rolling protective transport cases w/pull-handle
Each Inno Pocket Spot LZR Box Includes:
(1) American DJ Inno Pocket Spot LZR
(1) Power cord
(1) Preinstalled omega bracket
(1) User manual
The ADJ UC-IR Box Includes:
(1) ADJ UC-IR universal remote control for ADJ lighting fixtures
(1) QuickStart guide
