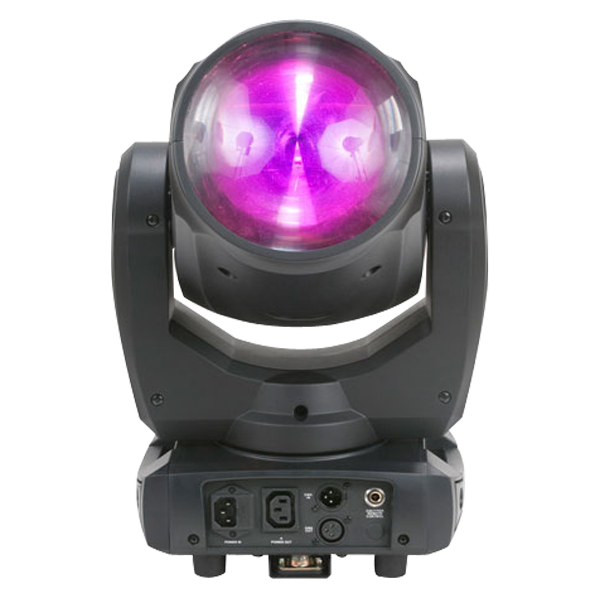

ADJ continues to push the boundaries of LED technology with the Inno Beam LED, a compact intelligent Moving Head with a bright 80W LED source. It produces a tight 6-degree beam projecting 8 colors plus white. It features a laser cut GOBO Wheel with 4 GOBOs and 4 Beam Reducers to change the size of your beam (for exciting effects and for pinspotting), an 8-facet prism and a Frost filter to create a wash effect.
The Inno Beam LED is lightweight and small in size making it extremely mobile for easy set-up and transport. It may be controlled via DMX, Sound Activation (with its own 4 built-in shows) or from the ADJ UC3 easy-to-use controller. It has a Pan/Tilt Inversion mode that makes the heads produce contrasting movements. There are 2 DMX channel modes (12 or 14 channels).
The Inno Beam LED has 5 selectable dimming curves, a high speed shutter for slow to fast strobing and pulsing, and has a low power draw of 129W at maximum.
ProX 250 Style Moving Head Lighting Case for 2 Units
Invest in the best protection for your moving head lights. This Case holds 2x 250 style moving heads.
- 3/8 inch Plywood.
- Black finish laminate.
- Inside lined w/ Durable hard rubber.
- Heavy duty ball corners.
- Industrial rivets.
- Recessed spring-loaded handles.
- Recessed butterfly twist latches.
- 4 inch casters with brakes on 2 wheels.
- Aluminum extrusion around caster plate.
- Stack-able 4 inch caster Dish on top of each case.
American DJ UC3 Universal Controller for ADJ Lighting Fixtures
This is a very easy to use controller that will control numerous different platforms. The UC3 controller has several different run modes, e.g. fast/slow, audio, manual, auto position and latch. It has a wide variety of effects like strobe, X/Y, moving pattern selection, gobo, color changing etc.
Chauvet DJ CH-05 31" Lighting Safety Cable
Chauvet encourages customers to make safety a priority by utilizing the right clamps and cables for their lighting applications. Every fixture that is hung should use a safety cable.
Safety Cable Features:
- Steel cable ensures fixtures don't fall.
- Includes a carabiner to safely hook onto most fixtures.
ADJ Inno Beam LED Specifications
- High output Moving Head beam effect with a bright white 80W LED source.
- 8 Colors + white Laser cut Gobo Wheel with 4 GOBOs and 4 Beam Reducers.
- Separate color & GOBO wheels.
- Beam Angle: 6-degrees.
- 3 Operational modes: DMX Controlled, Sound Active & Internal Show control modes.
- 2 DMX channel modes: 12 or 14 Channel.
- 4 Built-in shows.
- 8-facet Prism.
- Frost Filter.
- Gobo Shake effect.
- Gobo scroll mode.
- 540Â° pan / 210Â° tilt (16-bit).
- Pan /Tilt Inversion mode.
- 5 selectable Dim Curves (Standard, Stage, TV, Architectural & Theatre).
- Shutter: Pulse effect; random strobe slow to fast.
- Dimming: 0% - 100%.
- Fan Cooled.
- Omega bracket included.
- IEC AC IN/OUT on rear to daisy chain power (up to 3 Inno Beam LED's @ 120V and 6 Inno Beam LED's @ 230V ).
- Compatible with American DJ UC3 Series easy-to-use controllers (sold Separately).
- Power consumption: 129W Max.
- Multi-voltage Operation: AC 100 - 240V, 50/60Hz.
- Lux @ 3M: 40060 lux.
- LED Source: 80W White LED source ( Rated at 50,000 hrs).
- Dimensions (LxWxH): 11.4"" x 7.4"" x 18.1"" / 289 x 188 x 461mm.
- Weight: 8.2 kg..
Pro-X XS-MH250X2 Specifications
- Interior Dimensions : 36.0"L X 30.0"D X 21.0"H
- Weight: 92.00 lbs
- Shipping Dimensions:37.0"L X 31.0"D X 22.0"H
- Weight: 100 lbs
- To Fit : 2x 250 Style Moving Head Lighting fixtures
ADJ UC3 Specifications
- The UC3 provides easy-to-use control of various American DJ lighting fixtures.
- Mode Selection: Different run modes, e.g. fast/slow, audio/manual/ auto, position, latch, etc., correspond to different functions.
- Function Selection: Implements a wide variety of effects, like strobe, X/Y moving pattern selection, gobo/ color changing, X/Y position. setting, etc. Functions vary with different fixtures.
- Cable length: Approx. 32 ft. / 9.75 mm.
- Connection: 1/4 Stereo plug.
- Dimensions: 3.54"x2.36"x.78" / 90x60x20mm.
- Weight: 1 lbs. / .45 kgs..
Chauvet DJ Safety Cable Specifications
- Load Capacity: 60 lb (25 kg)
- Length: 31 in (787 mm)
- Weight: 0.1 lbs (0.04 kg)
This Package Includes:
- (2) American DJ Inno Beam LED Compact Intelligent Moving Head
- (1) ProX 250 Style Moving Head Lighting Case for 2 Units [XS-MH250X2]
- (2) 25FT Sure-fit DMX connecting cables
- (4) Global Truss Pro Clamps
- (4) Chauvet DJ CH-05 31"" Lighting Safety Cables
- (1) American DJ UC3 Universal Controller
Each Inno Beam LED Box Includes:
- (1) Inno Beam LED
- (1) Power Cord
- (1) Instruction Manual
The XS-MH250X2 Box Includes:
- (1) ProX Cases MH250X2W 250 Style Moving Head Lighting Case for 2 Units
The UC3 Box Includes:
- (1) American DJ UC3 Universal Controller
Each CH-05 Box Includes:
- (1) Chauvet DJ CH-05 31"" Lighting Safety Cable
