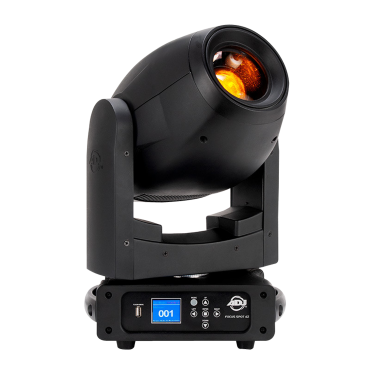

ADJ Focus Spot 4Z

$2,059.99
$1,029.99
Availability: In stock

Availability: In stock

$2,059.99
$1,029.99
The new Focus Spot 4Z sits at the top of range of the popular Focus Series moving heads from ADJ Lighting.

Qty:

Details

Overview

The new Focus Spot 4Z sits at the top of range of the popular Focus Series moving heads from ADJ Lighting. The Focus Spot 4Z is powered by a brilliant 200W cool white LED engine and is equipped with motorized focus and zoom (11 ~ 22-degree zoom). Its designed for temporary live events and fixed installations in nightclub, stages or churches. It is professionally fit with one GOBO wheel with 6 rotating/replaceable GOBOS, 8 vibrant colors plus white, and 2 prism wheels (one 5-facet linear and one 6-facet circular).

The Focus Spot 4Z has locking powerCON In and out connectors to daisy chain the power, as well as 3-pin DMX In/Out to transmit a DMX signal from one fixture to the next. There is a USB firmware update port built-in plus advanced control options such as: 16-bit fin pan and tilt, multiple DMX control modes, and 6 different dimming options. The Focus Spot 4Z offers a robust light output in a light weight, compact foot print (18-inch high and one 23 pounds).

Specifications

Light Source:

  • 200W Cool White LED Engine (50,000 hr.)

Features:

  • Motorized Focus
  • Motorized Zoom: 11 ~ 22-degrees plus 16-bit Fine Zoom
  • 2 Prism FX: Rotating 5-facet Linear & rotating 6-facet Circular
  • 0-100% smooth dimming
  • Various strobe speeds
  • USB firmware update port
  • 2 cooling fans

Color Wheel:

  • 8 dichroic colors + white

GOBO Wheel:

  • 6 aluminum GOBOs + open
  • All GOBOs removable & rotatable
  • GOBO Shake Effect
  • GOBO size: 23mm (outer); 19mm (viewable); 0.5mm (thickness)

Prism Wheel:

  • Prism Wheel 1: Rotatable 5-facet Linear
  • Prism Wheel 2: Rotatable 6-facet Circular
  • Prism Indexing

Control:

  • 3 DMX Channel Modes: 16/18/22 Channels
  • Color LCD display with 6-button function menu
  • Data In/Out: 3-pin DMX
  • Power In/Out: Locking powerCON (Daisy chain 4 units @ 120V; 10 units @ 240V)
  • Control Mode: DMX512 or internal programs
  • 6 Dimming Curve Modes: Standard, Stage, TV, Architectural, Theatre, Stage 2
  • 0-100% smooth dimming
  • Various strobe speeds
  • USB firmware update port
  • With Wired Digital Communication Network

Pan/Tilt:

  • Pan: 540 & 630 degrees
  • Tilt: 270 degrees

Dimensions & Weight:

  • Dimension: 18" x 10.97" x 7.15" / 457 x 279 x 182mm
  • Weight: 23 lbs. / 10 kg.

What's Included:

  • Omega Bracket
  • 6 ft/3M powerCON power cable
  • Safety Cable
Manufacturer American DJ
