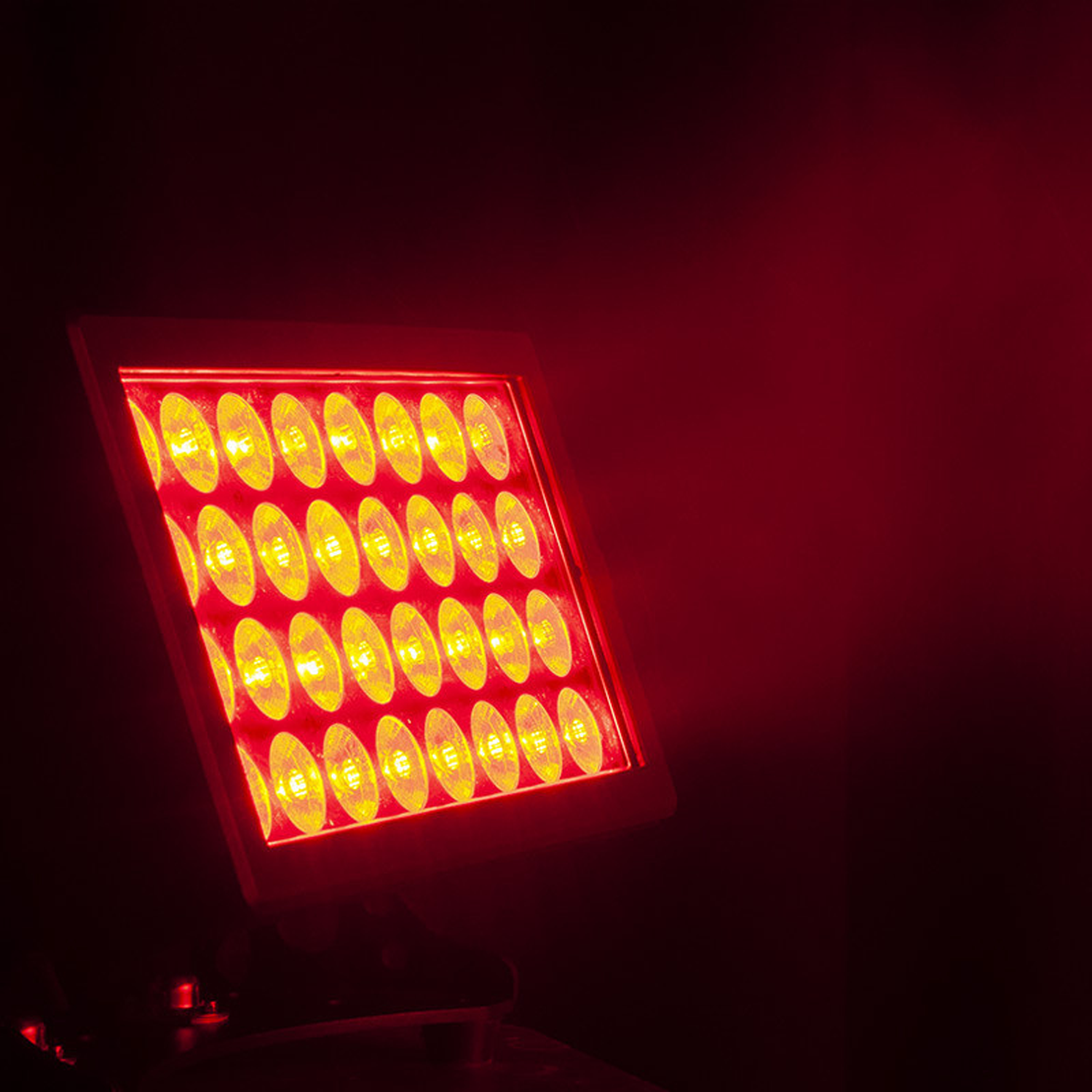

The ADJ 32 HEX Panel IP Pearl is an IP65 rated multi-functional wash / blinder / color strobe fixture for indoor or outdoor use. It features 32x 12W HEX LEDs (6-IN-1 - RGBWA+UV), 8 individually controlled sections with Pixel Zone Control and a 24-degree beam angle. With an all metal, black housing and IP65 outdoor rating, its protected from elements - dust, sand, moisture and liquids. It includes a magnetic removable filter frame to add a diffusion filter to change the beam angle.
On the rear panel it features IP65 5-pin DMX In/Out connections, and Seetronic powerKON IP65 In/Out connections to daisy chain the power. Both the DMX and powerKON connections are fitted with rubber protective covers. An OLED display with touch buttons helps to easily navigate the functions of the fixture.
The 32 HEX Panel IP Pearl is flicker free for film and broadcast, and has multiple DMX control modes, dimmer curve modes, and selectable gamma and LED refresh rate settings.
- LED: 32x 12W HEX (6-In-1) RGBWA+UV LEDs (50,000 hr.)
- Beam Angle: 24-degrees
- IP65 rated - protects from dust, sand, moister, water
- All metal construction - white housing
- Includes heavy duty bracket
- Includes magnetic removable filter frame to add a diffusion filter
- Flicker free for film and broadcast
- Display: OLED display with function buttons
- Data In/Out: 5-pin DMX IP65 (with rubber protective covers over connections)
- Power In/Out: Seetronic powerKON IP65 (with rubber protective covers over connections)
- DMX Channel Modes: Multiple DMX channel modes
- 8 individually controlled sections with Pixel Zone Control
- 0-100% Dimming + smooth 16-bit Dimming
- 5 Dimming Curve Modes
- Control Mode: DMX512, RDM
- Gamma Brightness: Multiple settings
- LED Refresh Rate: Multiple settings
- With Wired Digital Communication Network
- Power voltage: AC100-240V, 50/60Hz (Multi-voltage)
- Power consumption: TBA
Dimensions & Weight:
- Dimension: 13.75"x 9" x 6.75" / 350x230x170mm
- Weight: 24.25 lbs. / 11kg.
