American DJ Focus Spot Three Z 100W LED Moving Head Spot with Motorized Focus

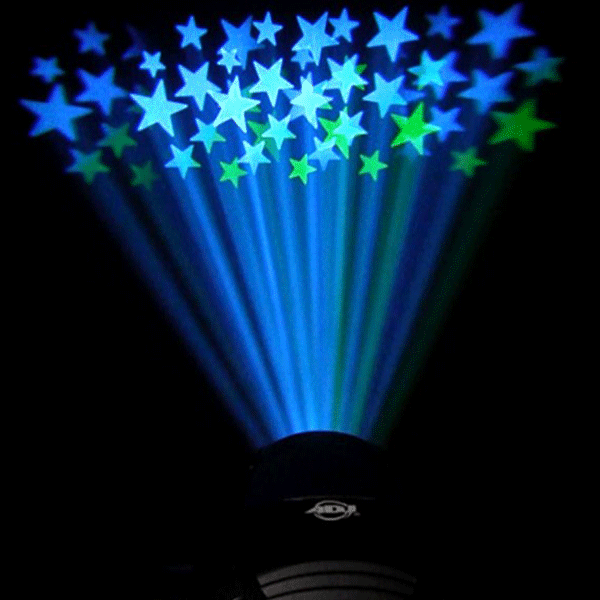

The ADJ Focus Spot Three Z is a 100W LED Moving Head with motorized focus and motorized zoom allowing for a variable beam angle from 12 ~ 17—degrees. In addition, ADJ has fitted the Focus Spot Three Z with one rotating GOBO wheel, one fixed GOBO wheel and one color wheel, letting users generate unique patterns and effects in a series of vibrant hues. There are two 6-facet prisms (one circular and one linear), enabling spellbinding multi-beam effects capable of filling wide spaces with color and movement.
The Three Z is extremely versatile and has everything clubs, theaters, churches, concert productions and lighting professionals are looking for in a professional LED spot Moving Head. It has 18 & 21 DMX channel modes, Pan/Tilt Inversion, 16-Bit Fine Pan/Tilt, 3-pin DMX I/nOut, PowerCon In/Out power connectors, and a 4-Button DMX LCD menu with 180-degree inverse view mode.
Focus Spot Three Z Features:
- High Output 100W LED Moving Head spot with motorized zoom.
- Motorized Zoom: 12 ~ 17-degree beam angle.
- 3 Operational Modes: Sound Active, Show Mode, & DMX Controlled.
- 4 Built-in lighting shows.
- Electronic Dimming: 0% - 100%.
- Electronic Strobe/Pulse effect; random strobe slow to fast.
- 5 Dimming Curves.
- Pan/Tilt Inverse Mode for contrasting movement when fixtures are linked together.
- Motorized Focus.
- Fast Pan Tilt Movement.
- Gobo Shake effect.
- Two 6-facet rotating prism effects (circular & linear).
- 16-Bit Fine Pan/Tilt control.
- Stepper motors with micro stepping.
- 3-pin XLR In/Out.
- 4-Button DMX LCD menu with 180° Inverse View mode.
- Includes Omega bracket for truss mounting.
- Fan cooled.
ADJ Airstream IR Transmitter 4 Pack
The Next Generation of Lighting Control
Universal infrared remote control App for a variety of ADJ lighting fixtures. Compatible with iOS devices (iPad & iPhone). Requires ADJ Airstream IR Adapter (sold separately). ADJ Airstream IR sensors sold separately in a pack of 4 from ADJ dealers.
The Airstream IR works alongside the convenient Airstream IR App on iOS Devices.
Airstream IR Features:
- Easy Control of Fixtures.
- Wireless! (No Cables).
- Download the Airstream IR App for free in the Apple App Store.
- When using the App and sensor, make sure headphone volume is turned all the way up.
*Please note: iPhone or iPad sold separately.
Global Truss Medium Duty Narrow Clamp for 50mm Tubing
Medium duty clamp for 50mm tubing.
American DJ Focus Spot Three Z Specifications
- Light Source: 100W High Output LED.
- Variable beam angle: 15 ~ 20-degree beam angle.
- 18 & 21 DMX channel modes.
- 8 Colors + Spot.
- 2 Independent Gobo Wheel's: Gobo Wheel 1 has 7 Static Gobo's + Spot; Gobo Wheel 2 has 6 Rotating Gobo's + Spot.
- Pan: 540-degree; Tilt: 220-degree.
- PowerCon AC In/Out on rear to daisy chain power (up to 3 Focus Spot Three Z's @ 120V and 6 Focus Spot Three Z's @ 230V ).
- Long Life LED (Rated at approximately 50,000 hrs).
- Multi-voltage Operation: 100-230V, 50Hz/60Hz.
- Power Consumption: 230W.
- Dimensions (LxWxH): 7.25" x 11.25" x 18.75"/ 185 x 284 x 479mm.
- Weight: 24 lbs. /11 kgs..
ADJ Airstream IR Specifications
- Wireless control up to 15-20 feet.
- Sound Active.
- Black Out (Stand by).
- Full On.
- Fade / GOBO.
- Color Change.
- Show Selection.
Global Truss Narrow Clamp Specifications
- Minimum Tubing Diameter 48mm
- Maximum Tubing Diameter 51mm
- Max Load Capacity 200 kgs. - 440 lbs.
- TUV Approved
Unit Weight 0.78 lbs.
This Package Includes:
(2) American DJ Focus Spot Three Z 100W LED Moving Head Spots with Motorized Focus
(4) ADJ Airstream IR Transmitters
(4) Global Truss Medium Duty Narrow Clamps
(2) 25' Sure-fit DMX connecting cables
(2) Properly fitting & durable protective transport cases
Each Focus Spot Three Z Box Includes:
(1) ADJ Focus Spot Three Z
(1) PowerCON power cord
(1) Preinstalled omega mounting bracket
(1) User manual
(4) ADJ Airstream IR iOS device 1/8' plug-in transmitters
Each Narrow Clamp Box Includes:
(1) Global Truss Medium Duty Narrow Clamp for 50mm Tubing
